WOYO CTB007 OBD2 Breakout Box กล่องแยกสัญญาณและทดสอบระบบ CAN Bus สำหรับรถยนต์ 12V/24V (สายยาวพิเศษ)

WOYO CTB007 has two model.

one is 59inch/150cm, another one is 27inch/70cm.

Before you purchase, please confirm which model you need.

This is 59inch/150cm model.

This is 27inch/70cm model.

12V/24V 27inch/59inch CTB007 CAN Tester on Bench

When you use CTB007

only connect with 12V/24V Power battery,

you can test with CAN BUS Module, like EPS/Headlight/…

When your vehicle no battery,

connect with 12V/24V Power battery can power the car.

Feature:

1.CANTesterBoxisaCANBuscircuittestercompatiblewith12and24voltsystems;

2.TestingDLC(OBDport)ifanyerrorbeforeconnectingconnectingotherdiagnosticequipmenttoDLC,suchaspinshortcircuitandpolarityreverseconnection;

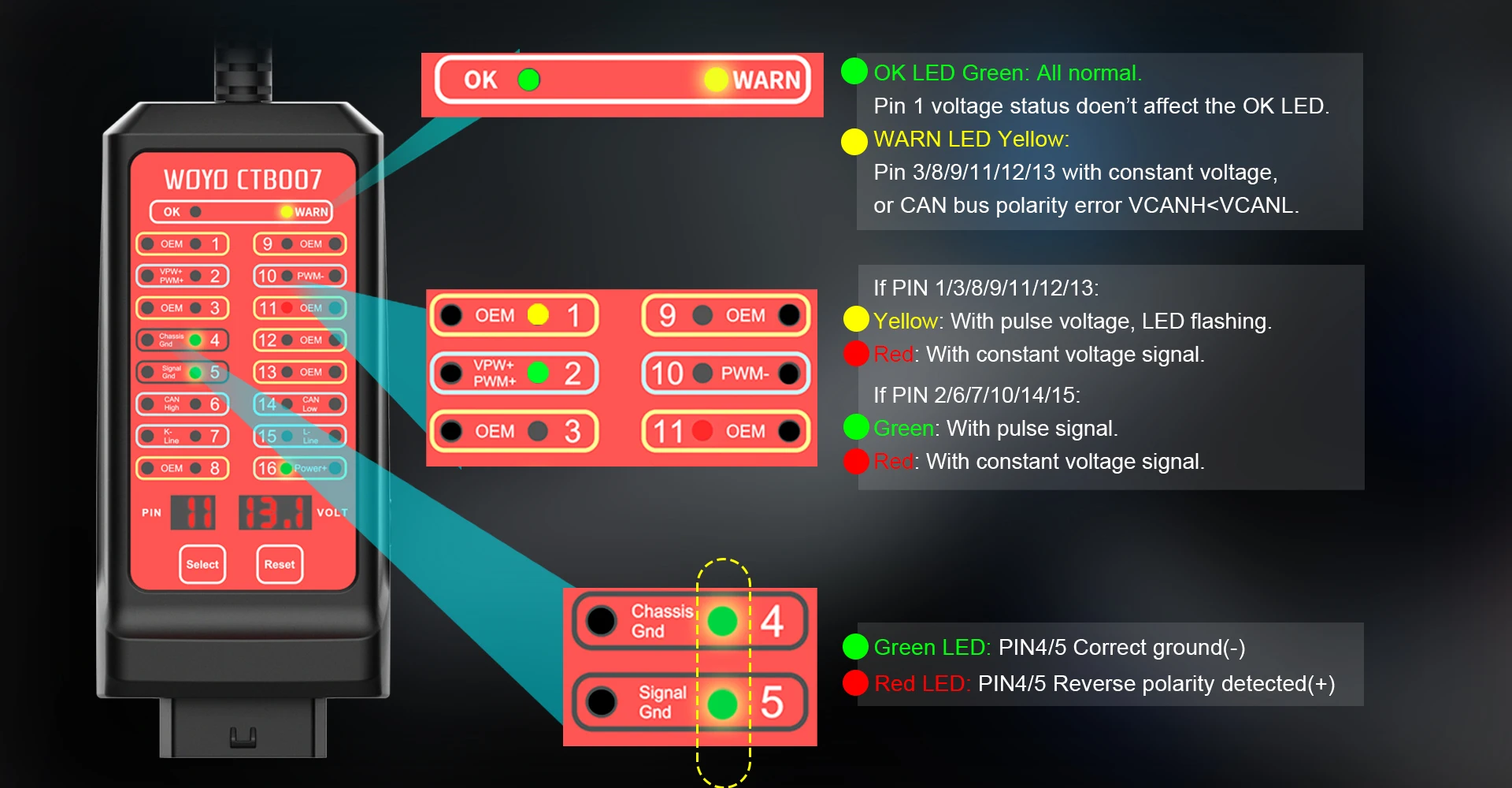

3.Real-timedisplayofcommunicationsignals(suchascommunicationprotocolsignals)ontheallocatedpinswhichcanquicklylocatefaultsandreplacethevoltagemeasurementfunctionofdigitalmulti-meter;

4.Fastlyconnect16pinsduringvehiclemaintenancediagnosis;

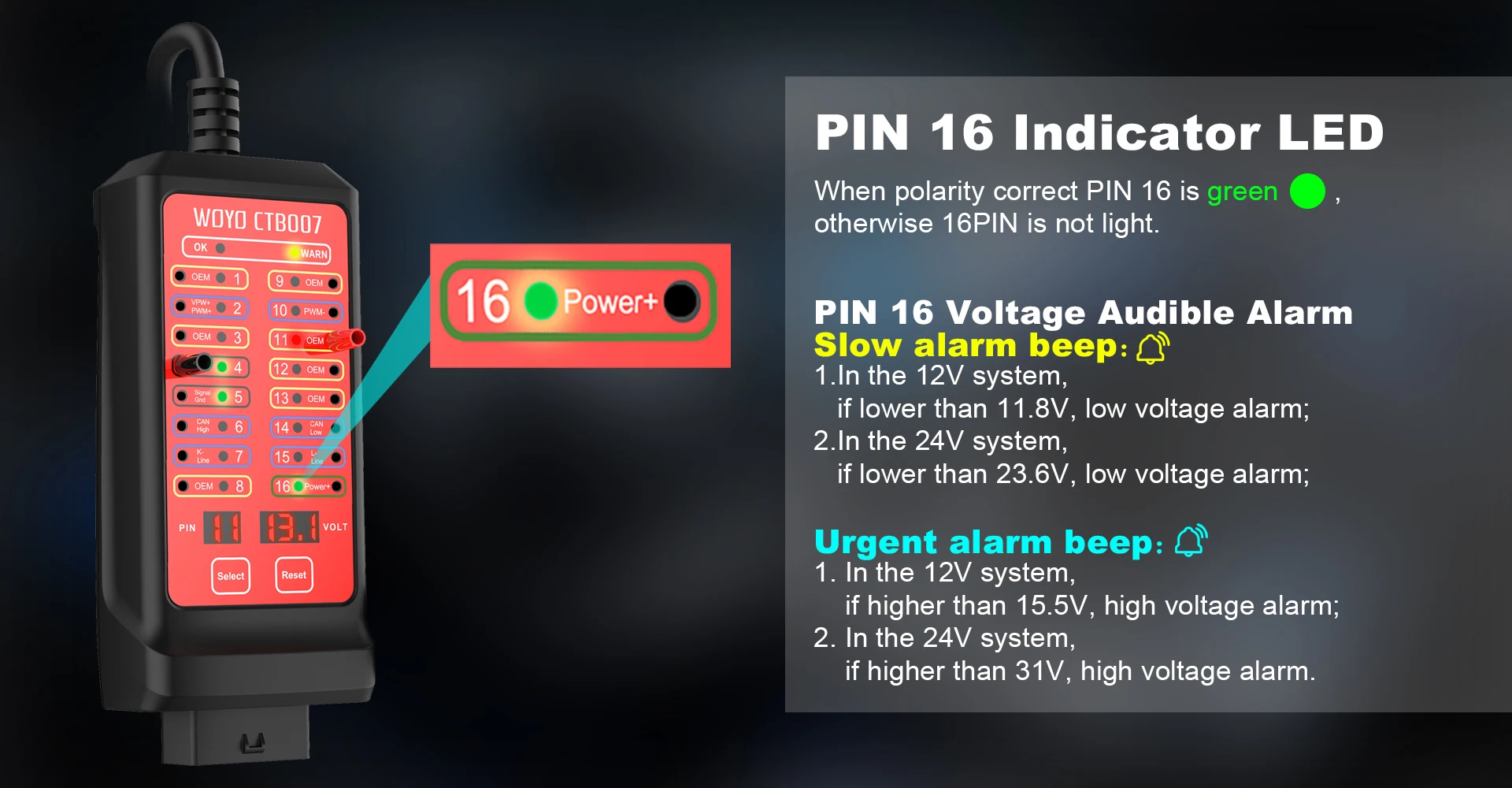

5.MonitoringinputvoltageofOBDwhenburningmodule,highandlowvoltagealarm;

6.Quick short obd porsche communication 3-7;

Short-circuit obd VW key all lost 1-6;

Short-circuit obd Mitsubishi remote control 1-4;

Short-circuit obd Toyota sync 4-13;

7.OBD workbench CAN boot box;

8.Replace the battery tool;

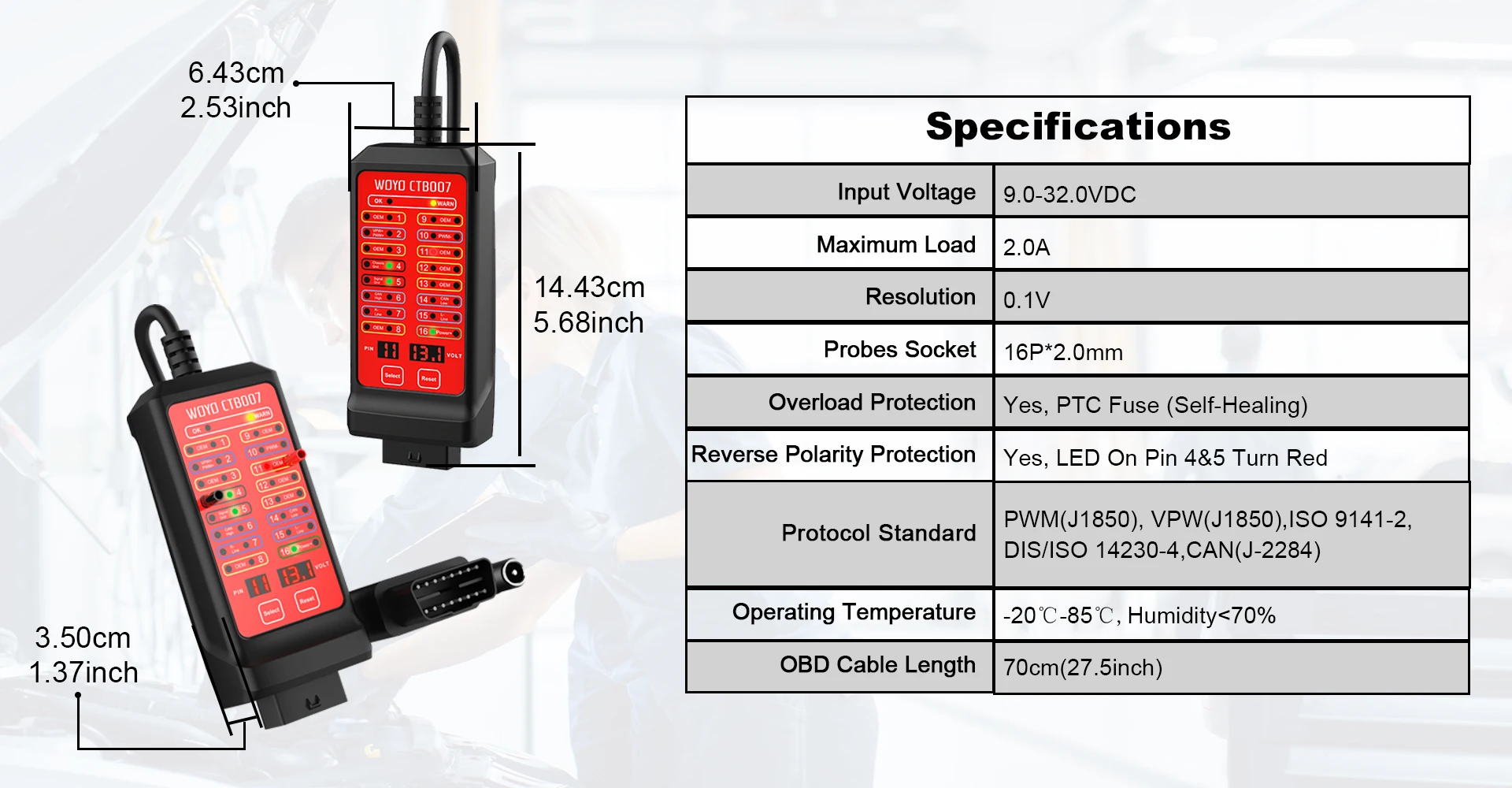

Specifications:

InputVoltage:9.0-32.0VDC

MaximumLoad:2.0A

Resolution:0.1V

OverloadProtection:Yes,PTCFuse(Self-Healing)

ReversePolarityProtection:Yes,LEDOnPin4&5TurnRed

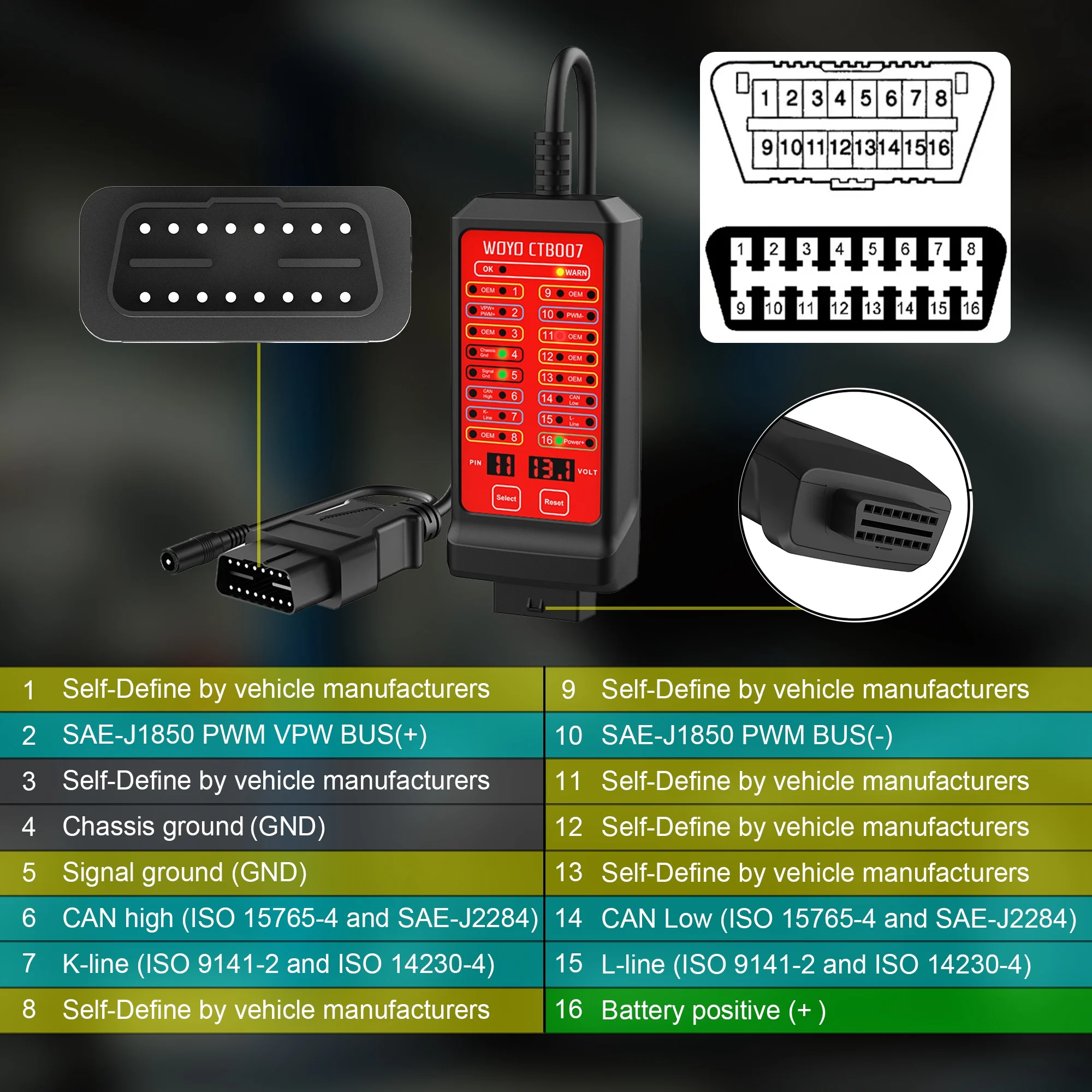

ProtocolStandard:PWM(J1850)、VPW（J1850）、ISO9141-2、DIS/ISO14230-4、CAN(J-2284)

OperatingTemperature:0℃-50℃，Humidity<70%

BananaSocket:16P*2.0mm

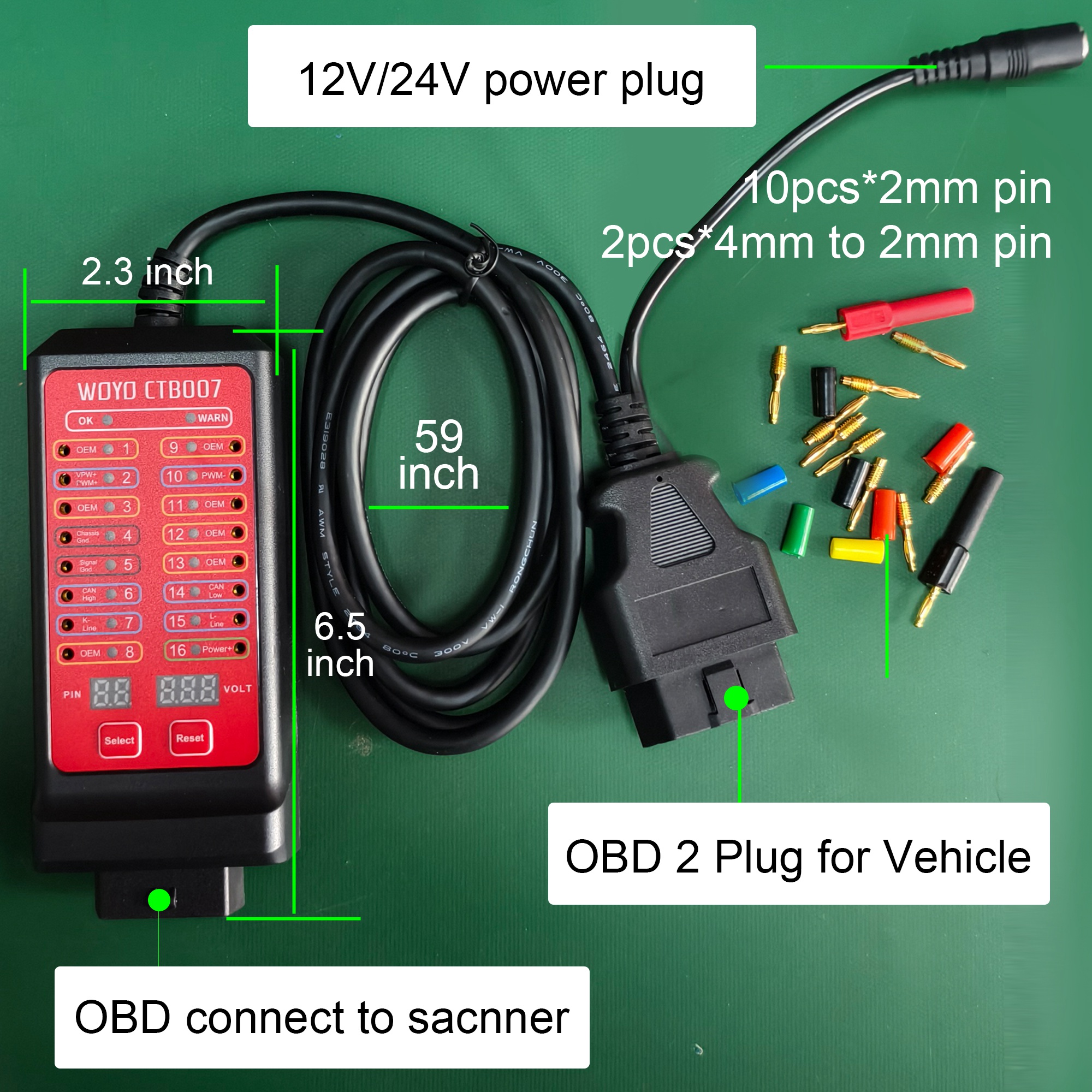

OBD cable length: 75cm(29.5inch) / 150cm(59inch)

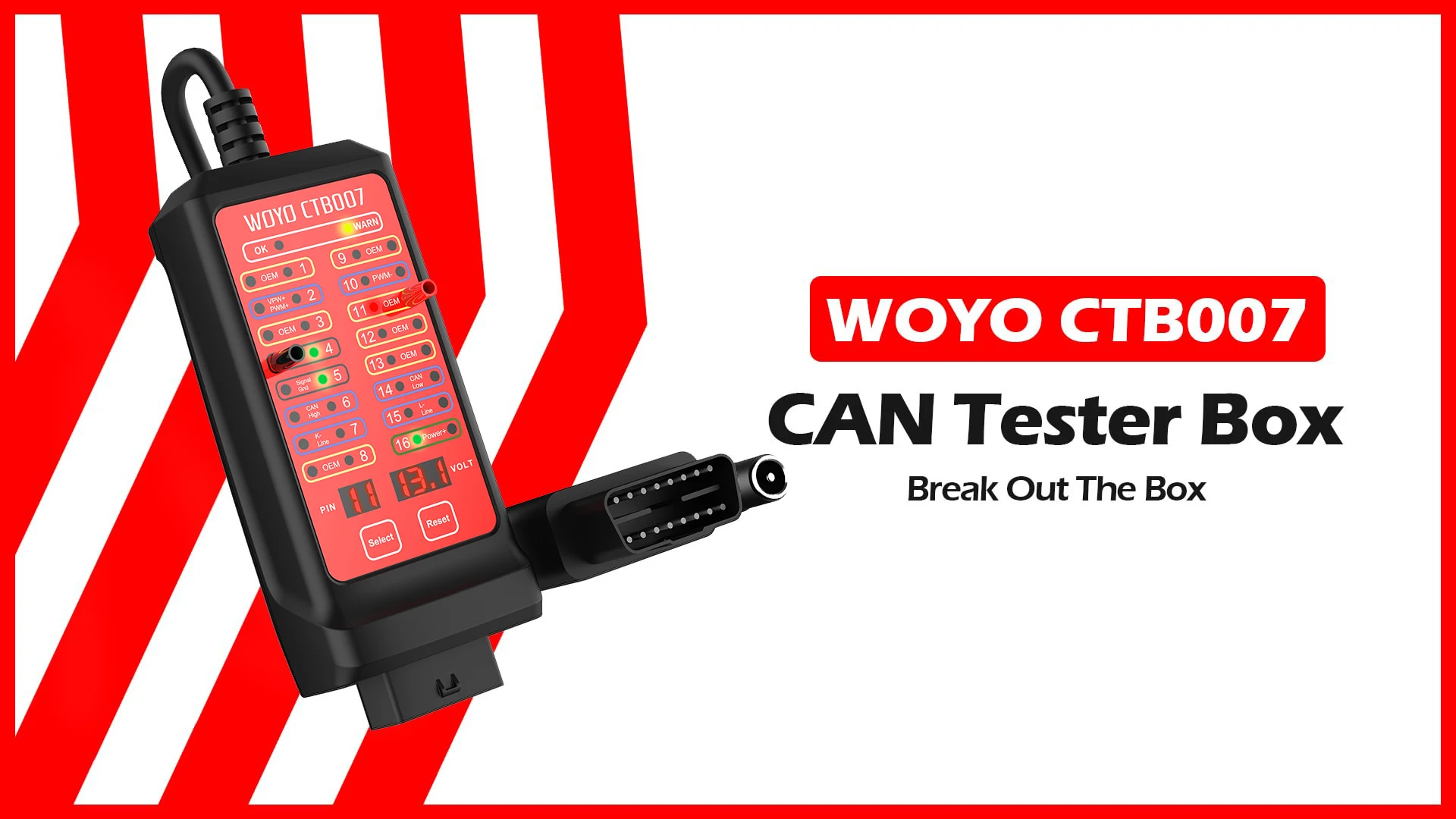

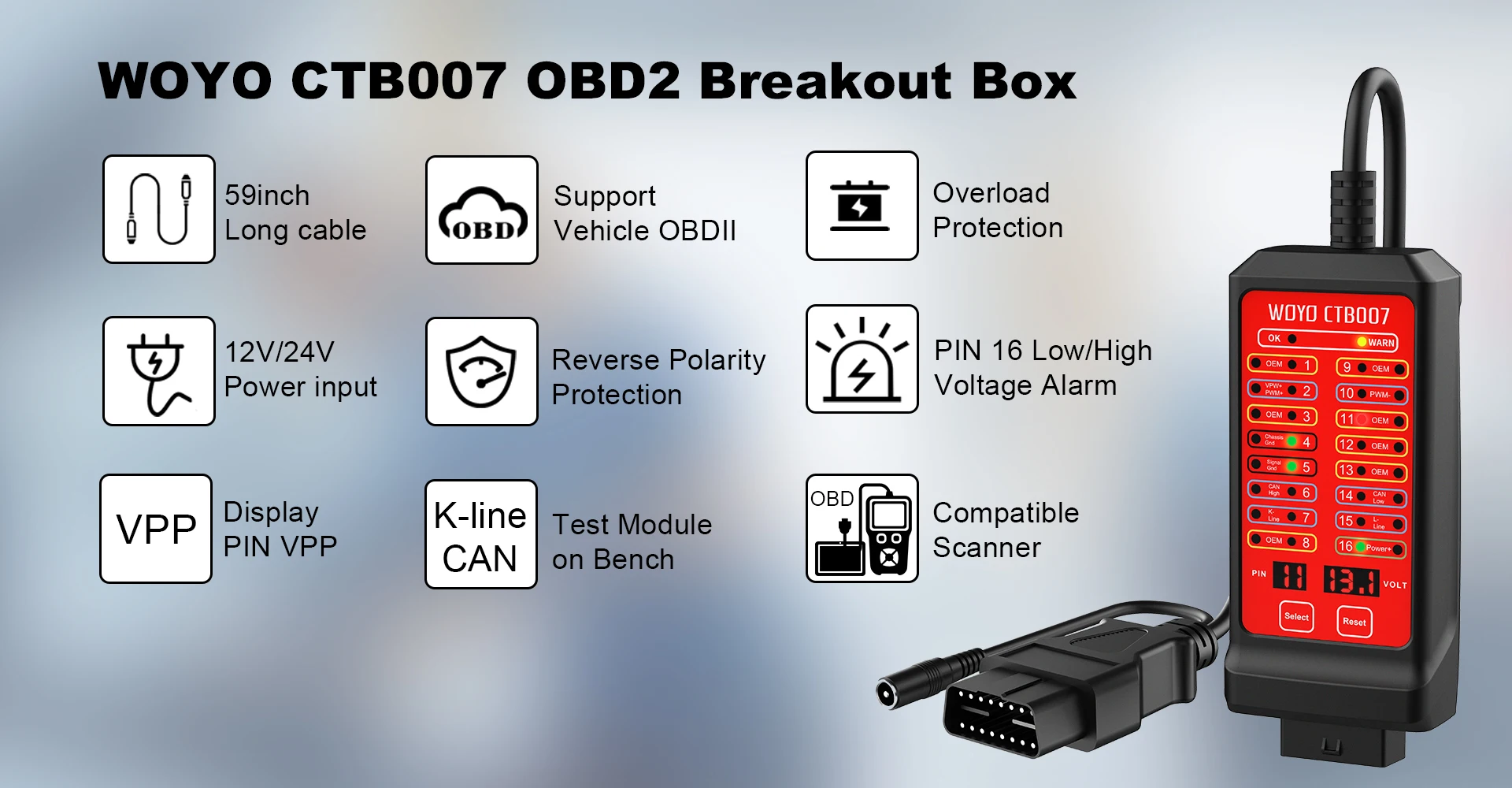

WOYO CTB007 CAN OBD 2 Breakout Box

New Verson with 150cm/59inch OBD Extension cable

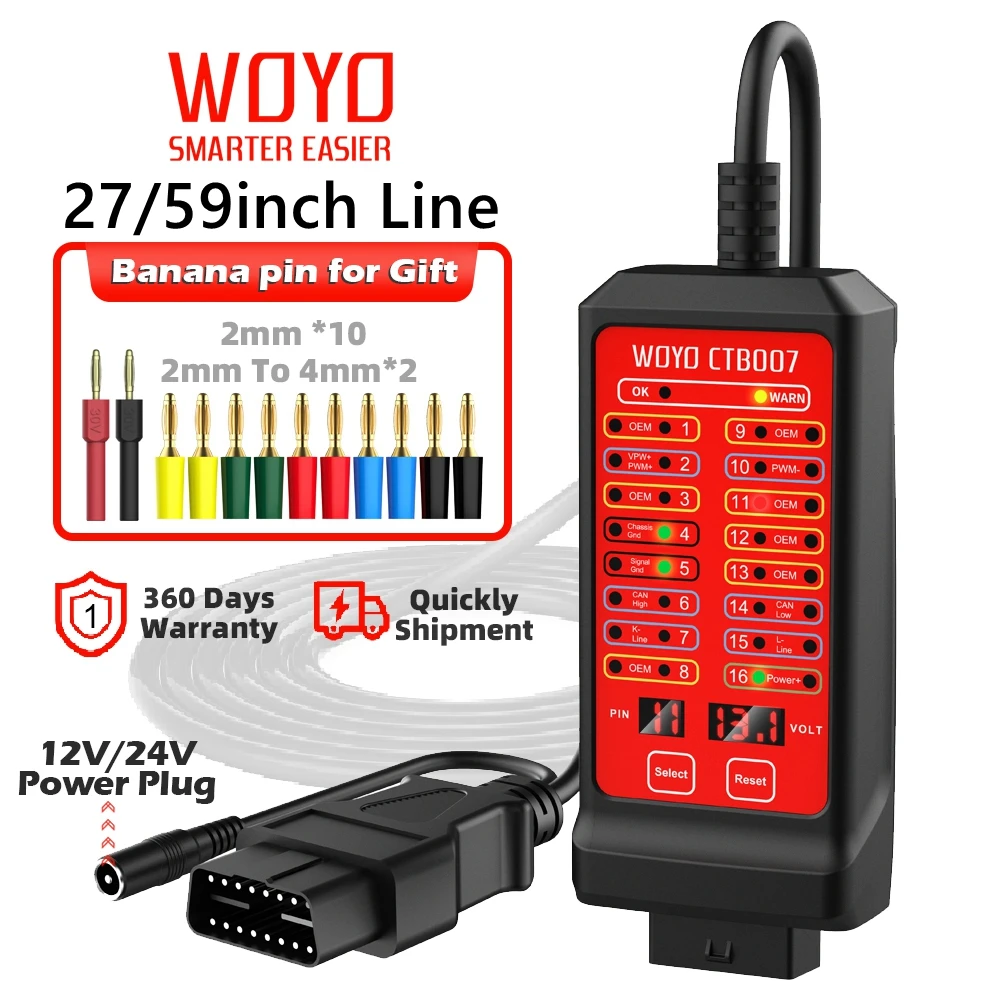

Banana Pin for Gift: 2mm * 10 , 2mm to 4mm * 2

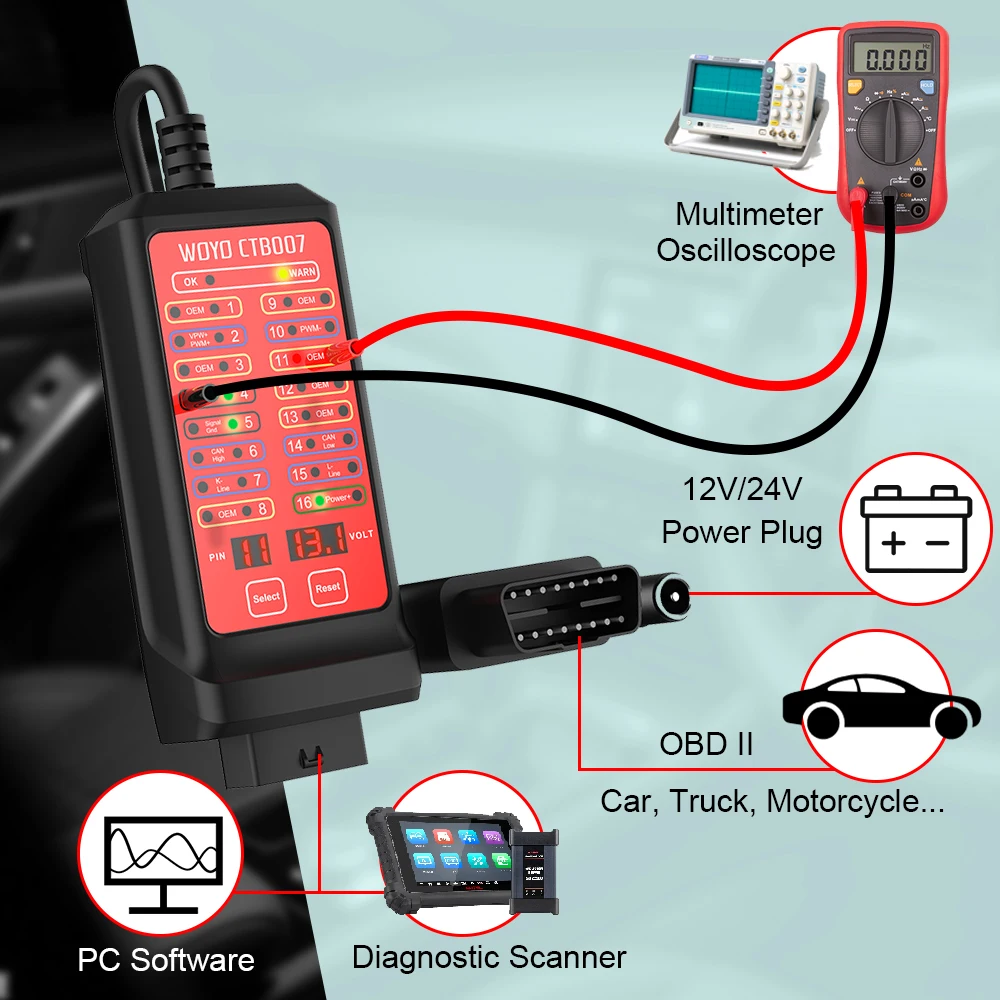

You can connect all kind of diagnostic tools.

The complimentary pins allow you to place them more stably when connecting our pins to read data.

When you are understaffed and need to diagnose problems with the car’s OBD system through other tools, our Breakout box and banana pin fixation can make it easier for you to carry out the maintenance process.

New version: Add extra 12V/24V Power supply.

When you connect to Vehicle OBD, but CTB007 no work (vehicle couldn’t provide power),

you can connect to 12V/24V Power battery in the same time to make it work.

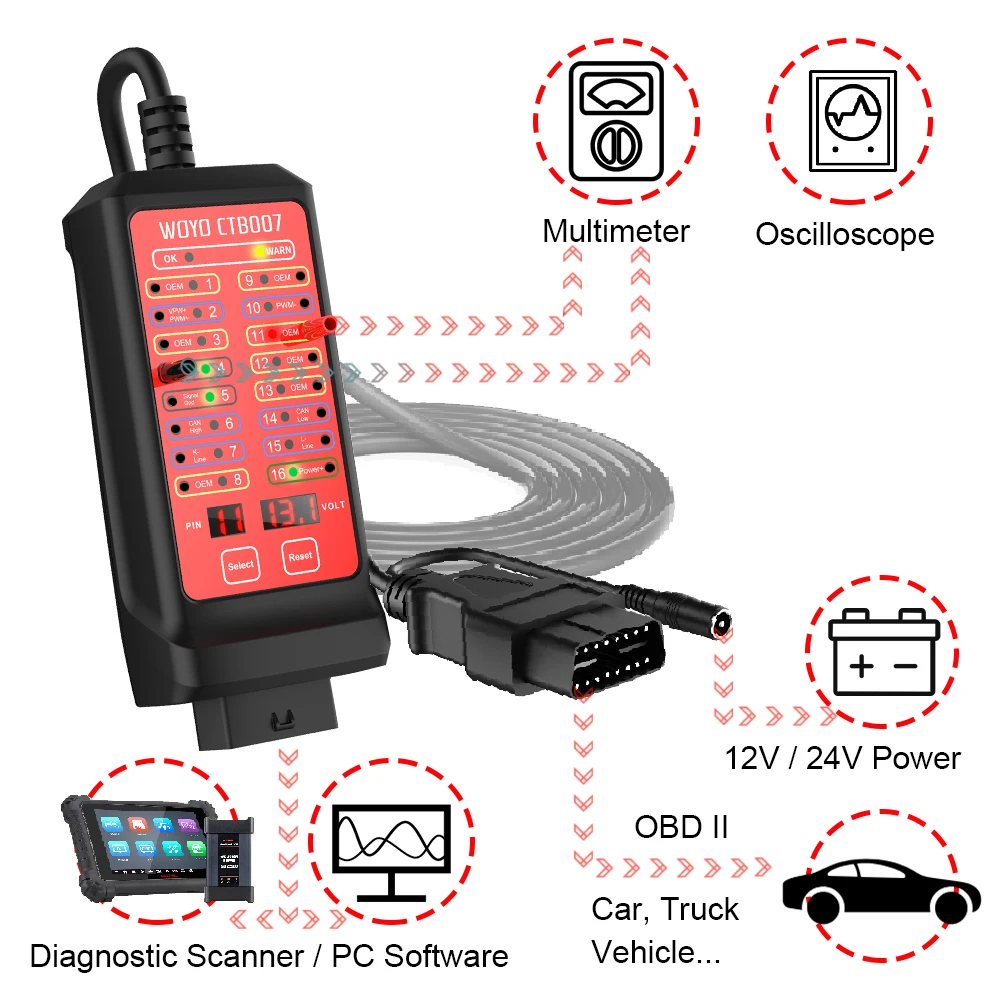

WOYO CTB007 Can help you more in workshop.

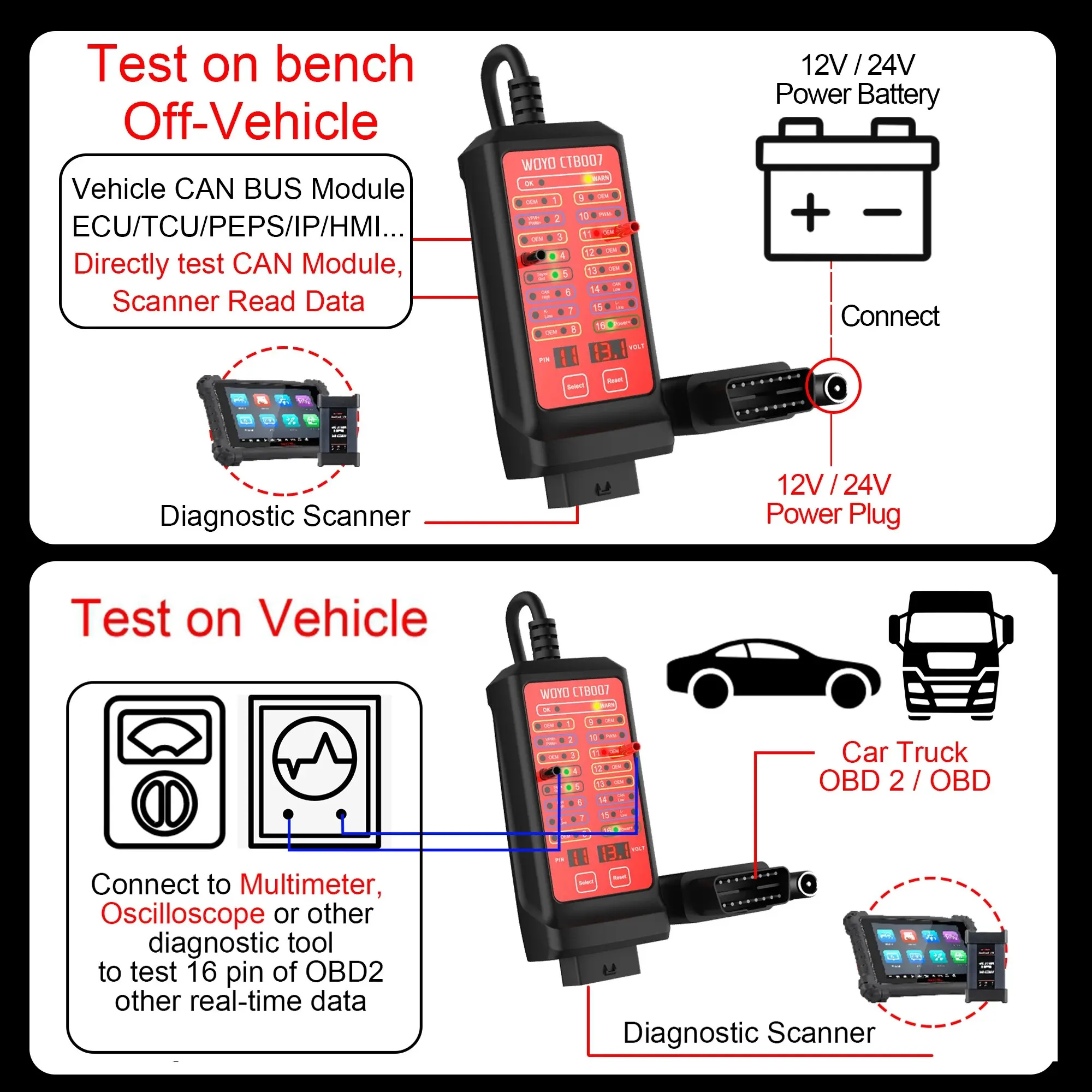

Test on Bench / Off-Vehicle State:

(Support CAN BUS Electronic Module, EPS/ECU/TCU/PEPS/IP/HMI/EPB…)

1. Use 12V/24V power plug to connect to battery, Don’t need to connect to OBD/OBD 2 plug.

2. Use CAN BUS Electronic Module connect to CTB007

3. CTB007 connect to Diagnostic scanner, Read and check CAN BUS Module real-data.

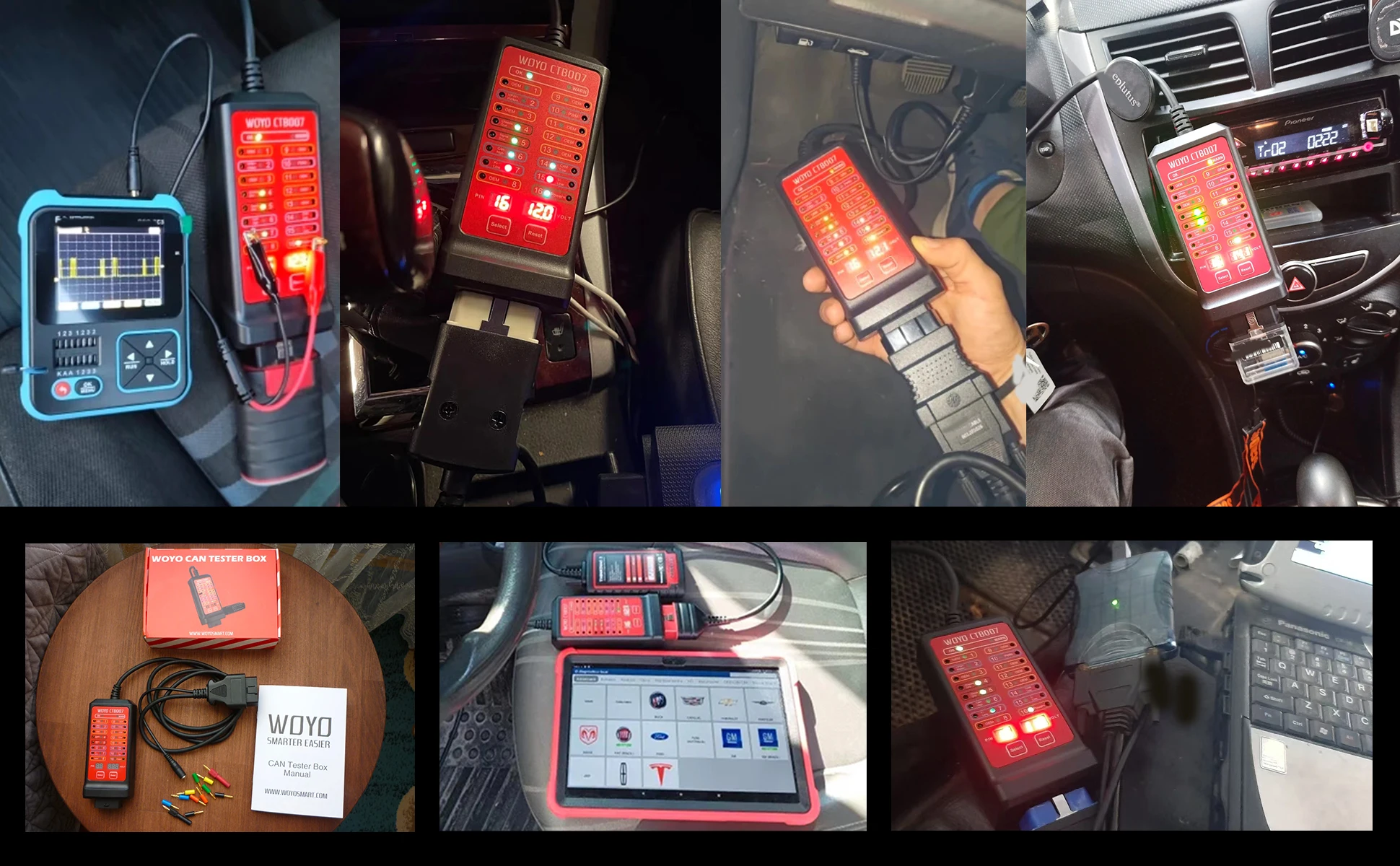

Test on Vehicle State:

1. CTB007 connects to Car OBD/ OBD2 Plug & Diagnostic .

2. Connect to Automotive Diagnostic scanner.

3. Know 16 pin of OBD work well or not, you can read the real-data from vehicle by scanner.

4. You also can connect to multimeter & Oscilloscope to test the other data you want to know about OBD 16pin if they have issue.

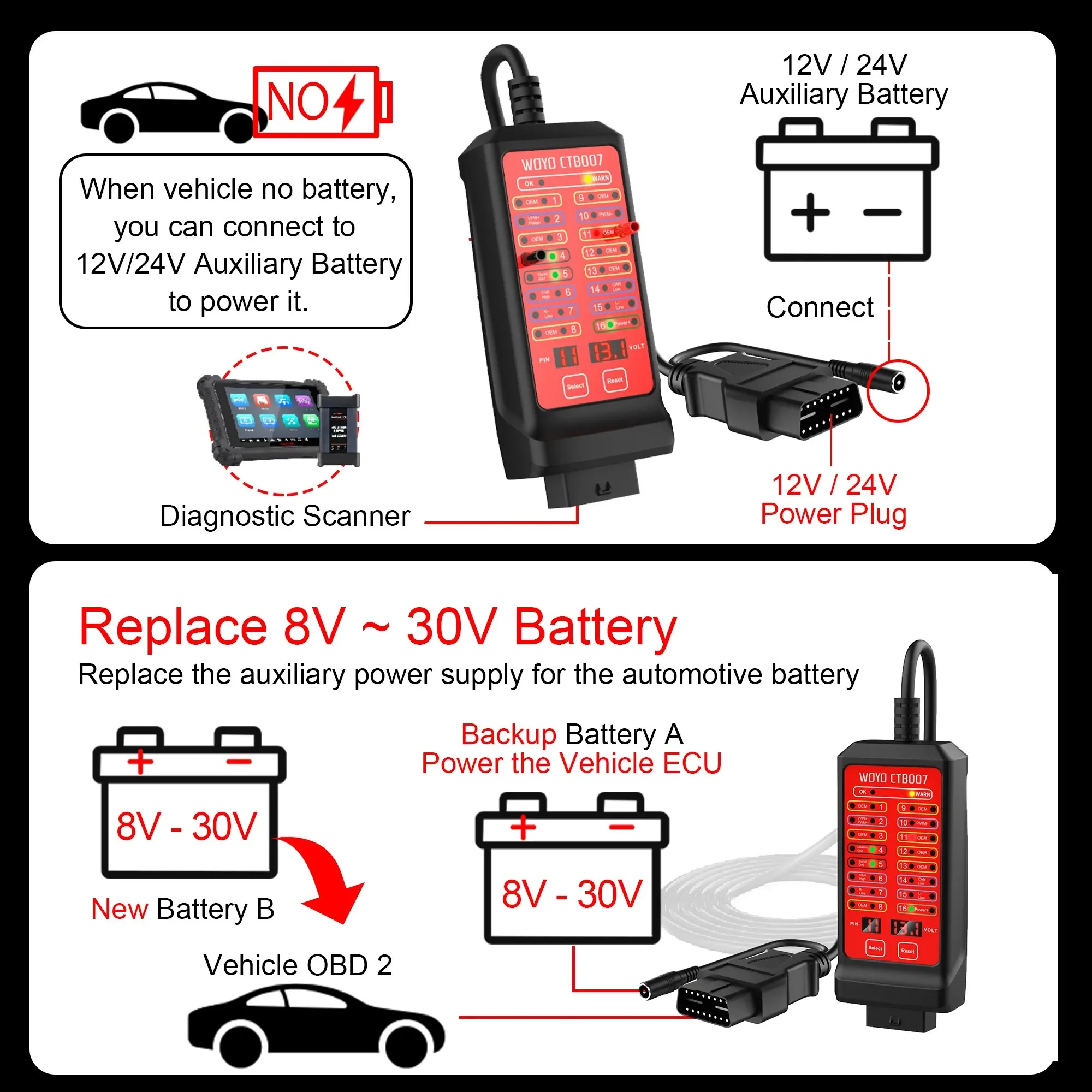

Suprise Function:

1.Replace the auxiliary power supply for

the automotive 12V/24V battery.

2. When your car without battery, but you want to read the car data,

you can connect to 12V /24V power battery to power the car.

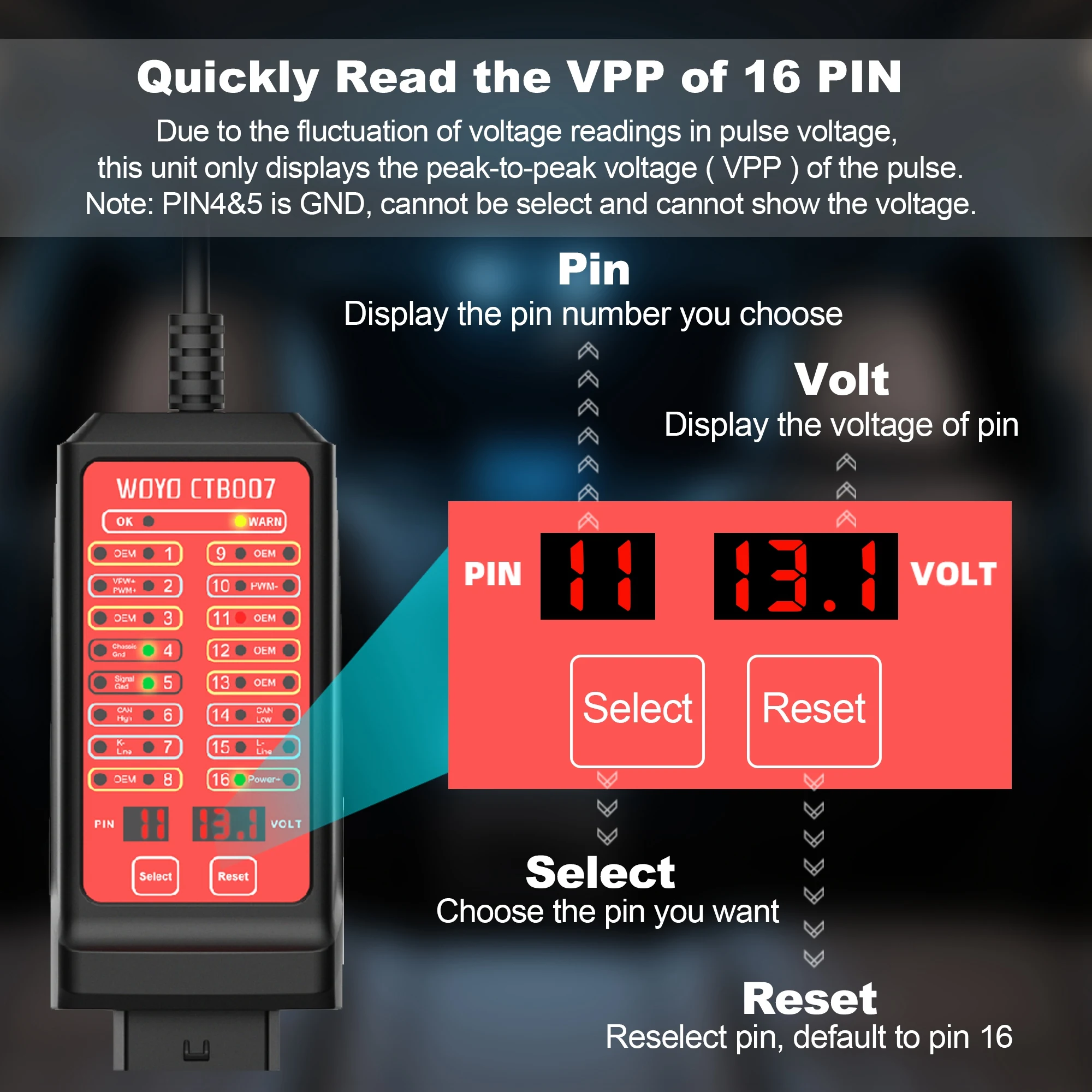

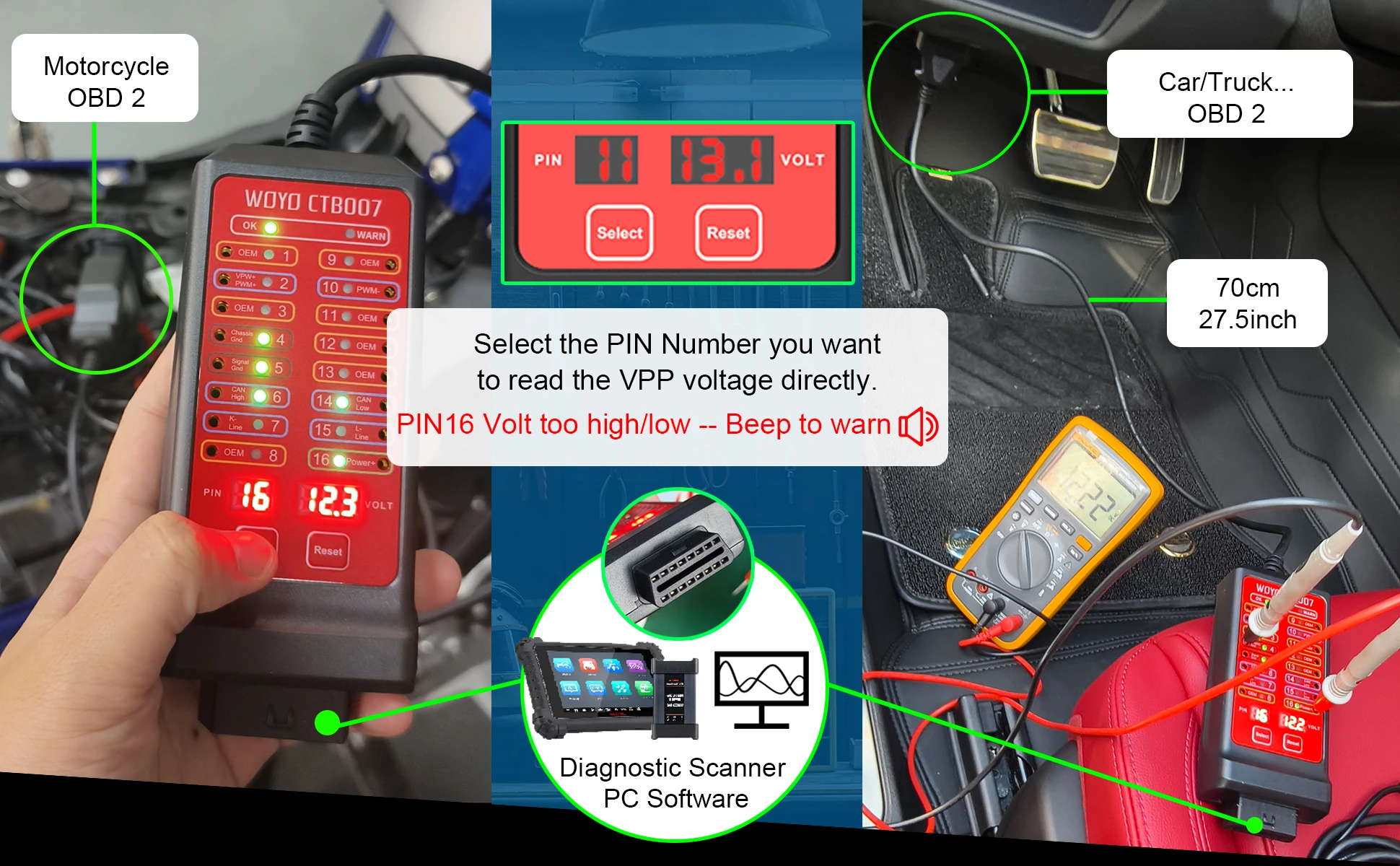

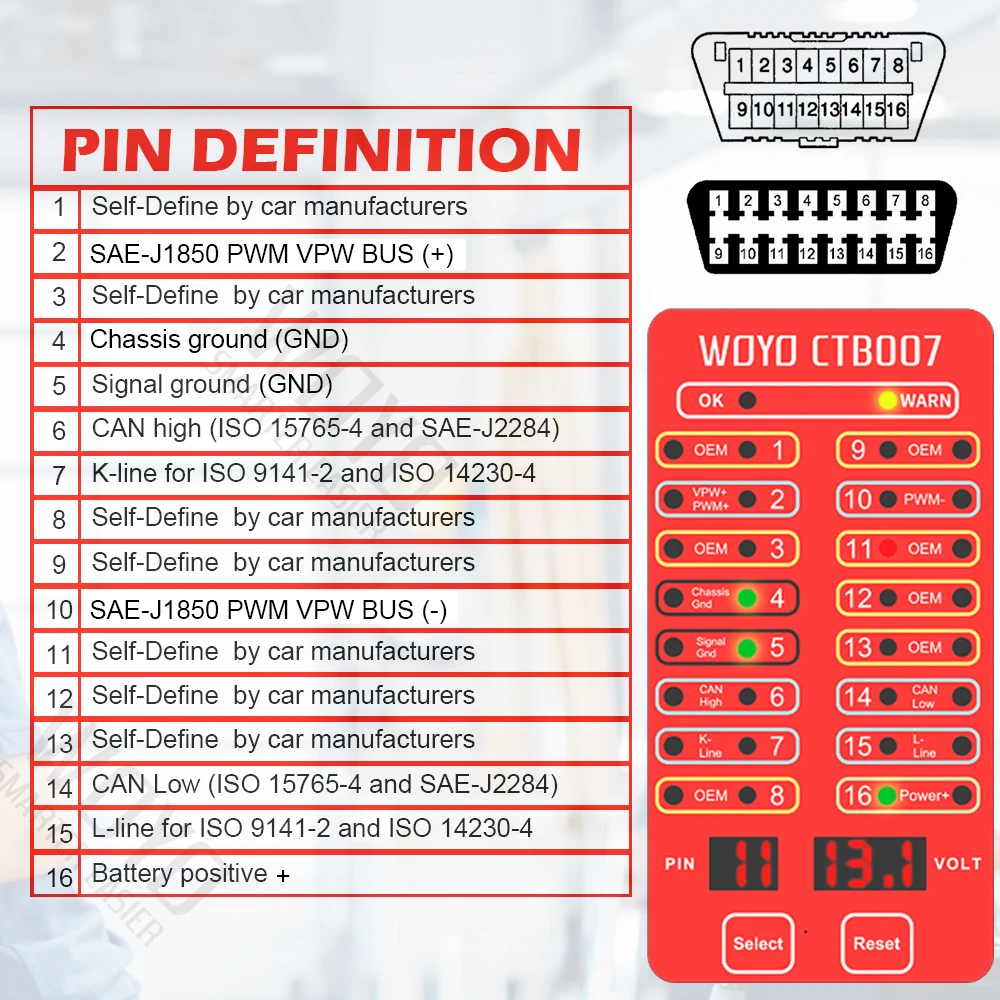

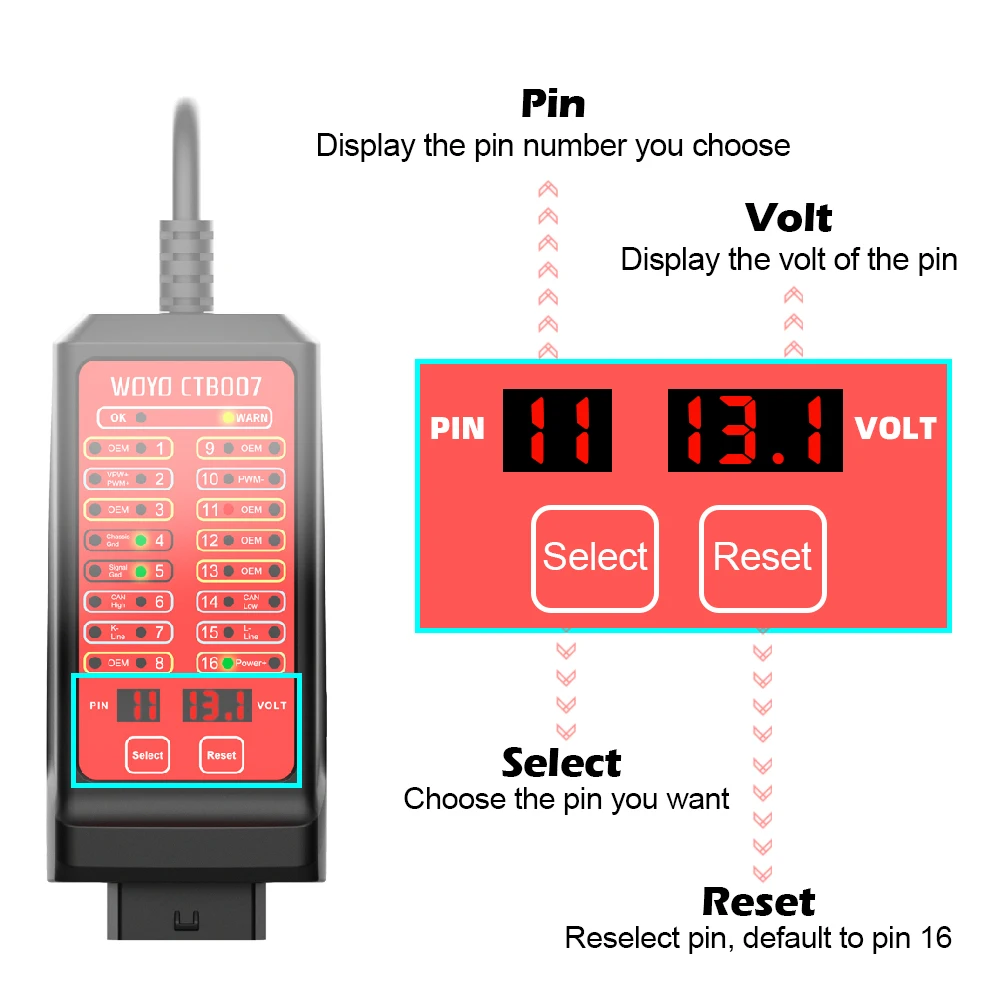

CTB007 also can test the voltage of OBD 16 pin

* It can quickly to confirm if only the pin have problem.

* It use with even 59 inch OBD extension cable, it can let you take it easy to test the car problem in the comfortable place.

*When you press the “Reset” button, CTB007 will default to testing the value of pin 16.

* Press the “Select” button, can choose the pin number you need.

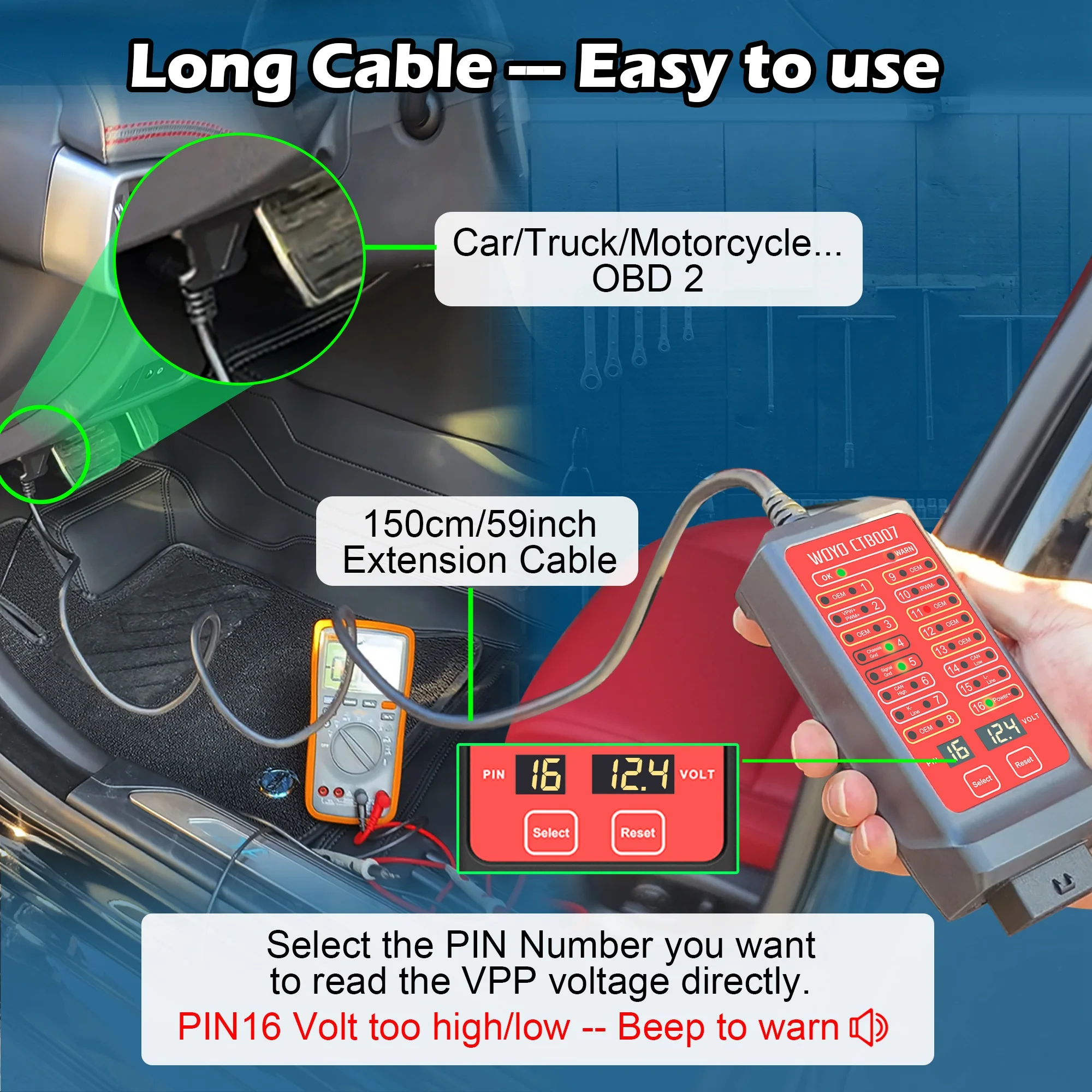

With 75cm/150cm Long OBD Extension Cable
