รายละเอียดสินค้า (Product Description)

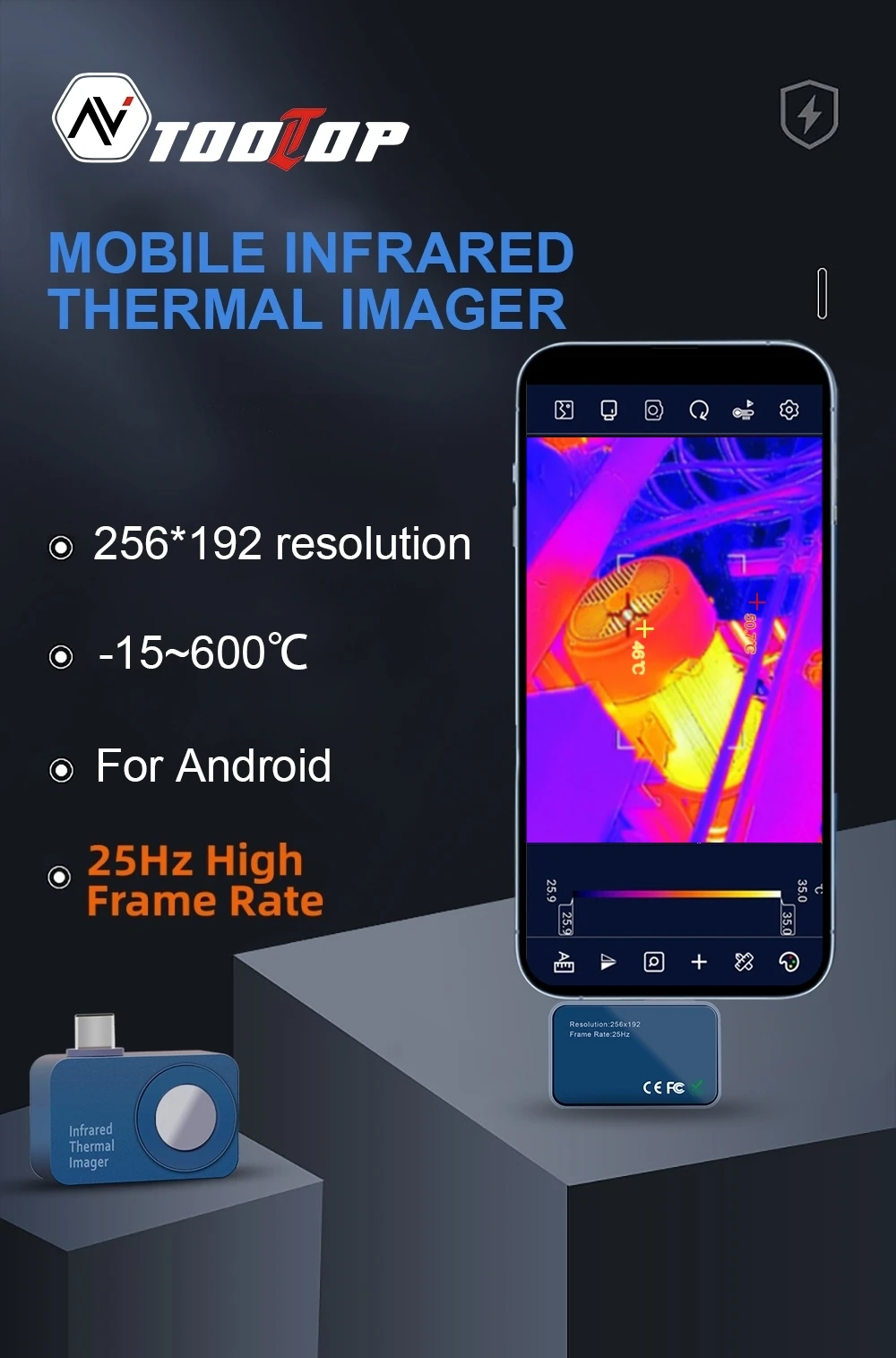

เปลี่ยนสมาร์ทโฟนของคุณให้เป็นห้องแล็บความร้อนความละเอียดสูงด้วย TOOLTOP T7: นวัตกรรมตรวจจับความร้อนระดับ 256×192 ที่เร็วและแม่นยำที่สุดในมือคุณ ยกระดับขีดความสามารถในการวินิจฉัยด้วย TOOLTOP T7 กล้องถ่ายภาพความร้อนรุ่นท็อปสำหรับมือถือที่ออกแบบมาเพื่อช่างเทคนิคยุคใหม่และผู้ที่ชื่นชอบเทคโนโลยีขั้นสูง ด้วยเซนเซอร์ความละเอียดสูงพิเศษและอัตราการรีเฟรชภาพที่ลื่นไหล ช่วยให้คุณมองเห็นทุกรายละเอียดความร้อนที่ซ่อนอยู่ ไม่ว่าจะเป็นจุดบกพร่องบนแผงโซลาร์เซลล์ หรือความร้อนสะสมในอุปกรณ์ไฟฟ้าแรงสูง
🎯 ฟีเจอร์เด่นที่ตอบโจทย์งานระดับ Professional:
-
Superior 256×192 Resolution: ให้ภาพความร้อนที่คมชัดและละเอียดกว่ากล้องมือถือทั่วไป ช่วยให้ระบุจุดร้อน (Hot Spots) บนแผงโซลาร์เซลล์หรือจุดชอร์ตในแผงวงจรได้อย่างแม่นยำแม้จากระยะไกล
-
Fluid 25Hz Refresh Rate: ภาพเคลื่อนไหวที่นุ่มนวลแบบ Real-time ไม่กระตุก ช่วยให้การกวาดตรวจหาความผิดปกติในระบบไฟฟ้าทำได้อย่างรวดเร็วและไม่พลาดทุกรายละเอียด
-
Solar Panel & Power Optimized: ออกแบบมาเพื่อตรวจเช็กแผงโซลาร์เซลล์โดยเฉพาะ สามารถหาเซลล์ที่เสื่อมสภาพหรือจุดที่เกิดความร้อนสูงเกิน (Thermal Anomalies) ได้อย่างมีประสิทธิภาพ
-

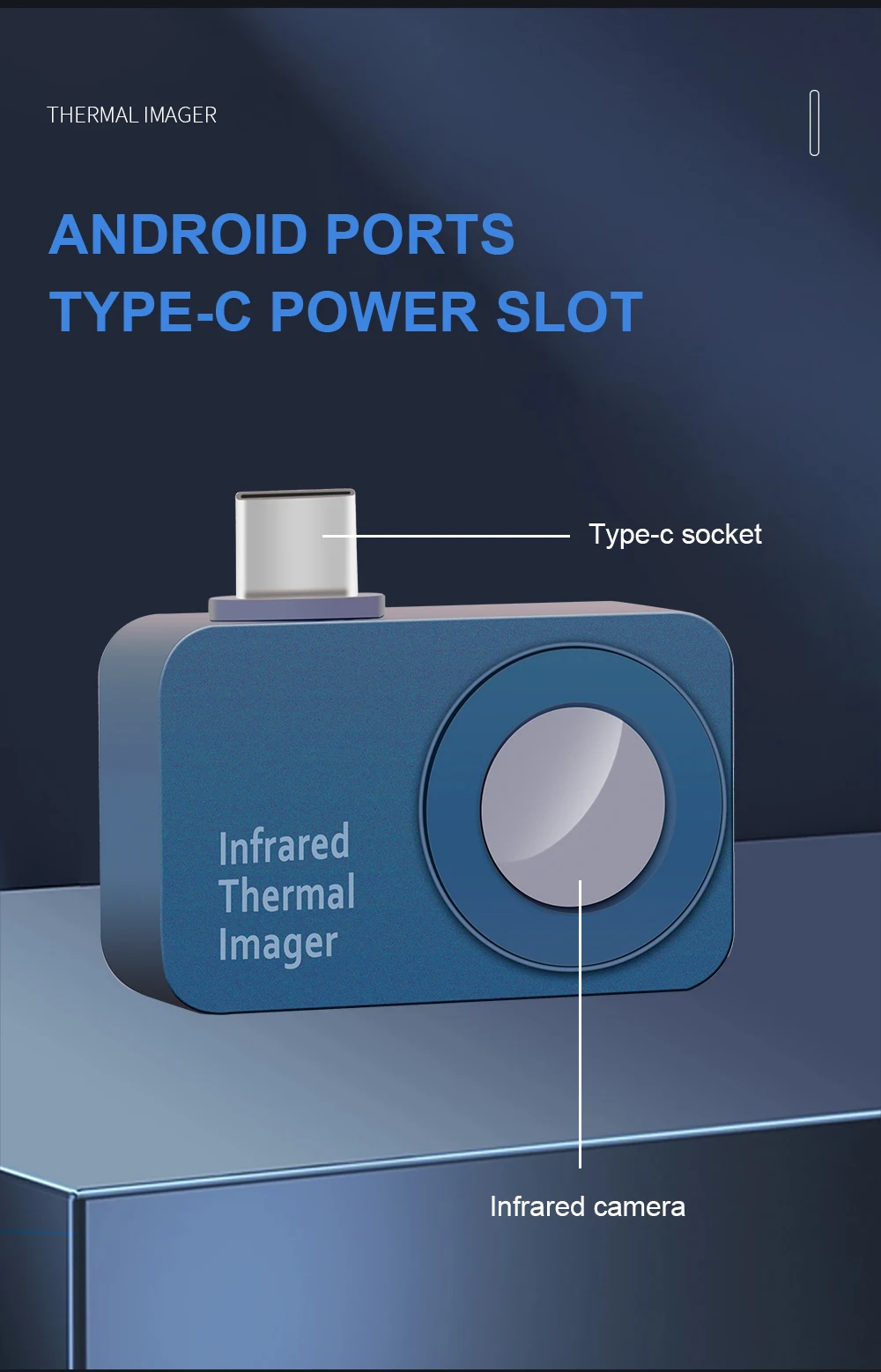

Plug-and-Play Type-C: เชื่อมต่อผ่านพอร์ต USB-C ของ Android ได้ทันที ไม่ต้องชาร์จแบตเตอรี่แยก ตัวเครื่องรับไฟจากสมาร์ทโฟนโดยตรง พร้อมใช้งานทุกสถานการณ์
-

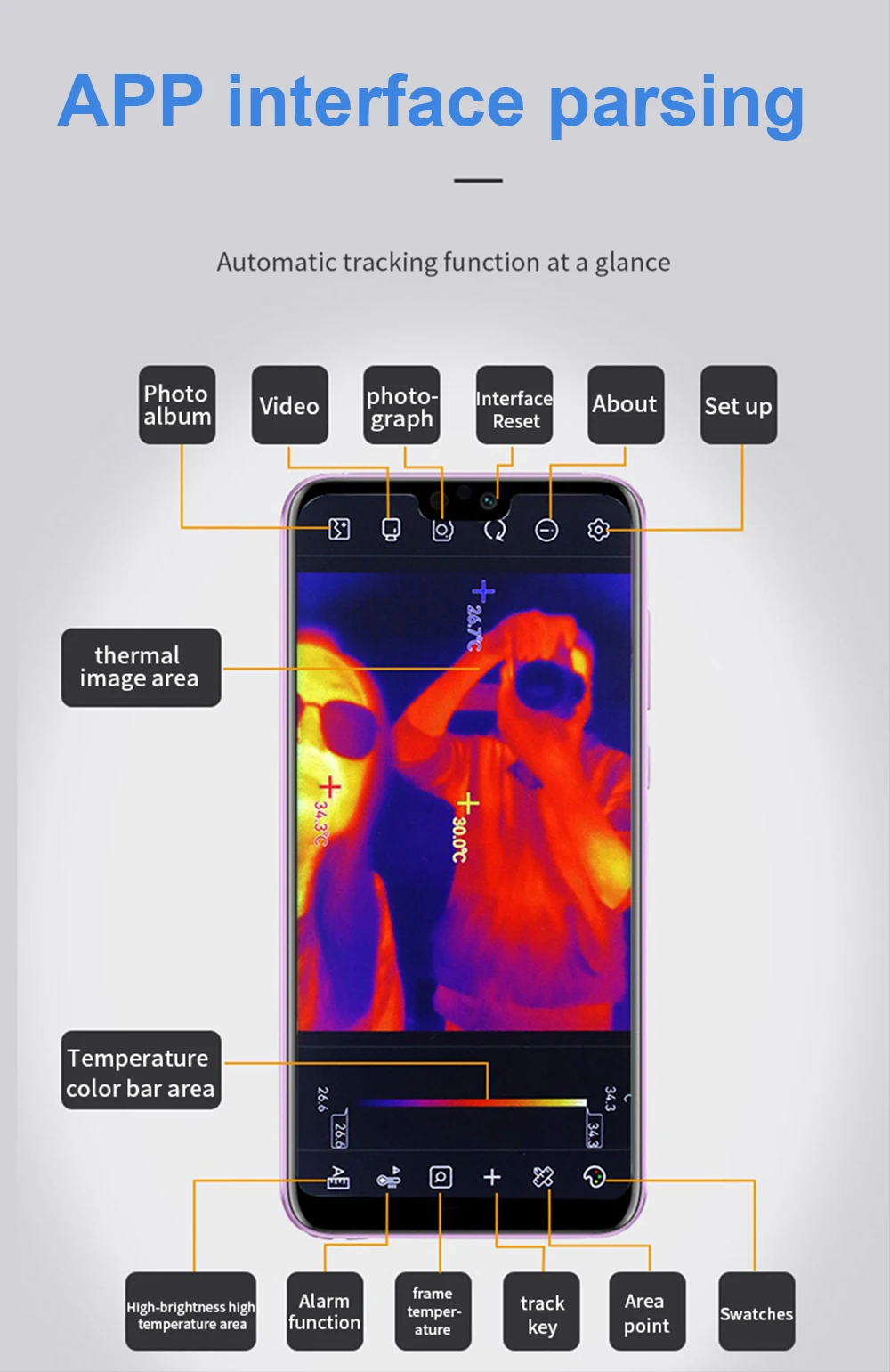

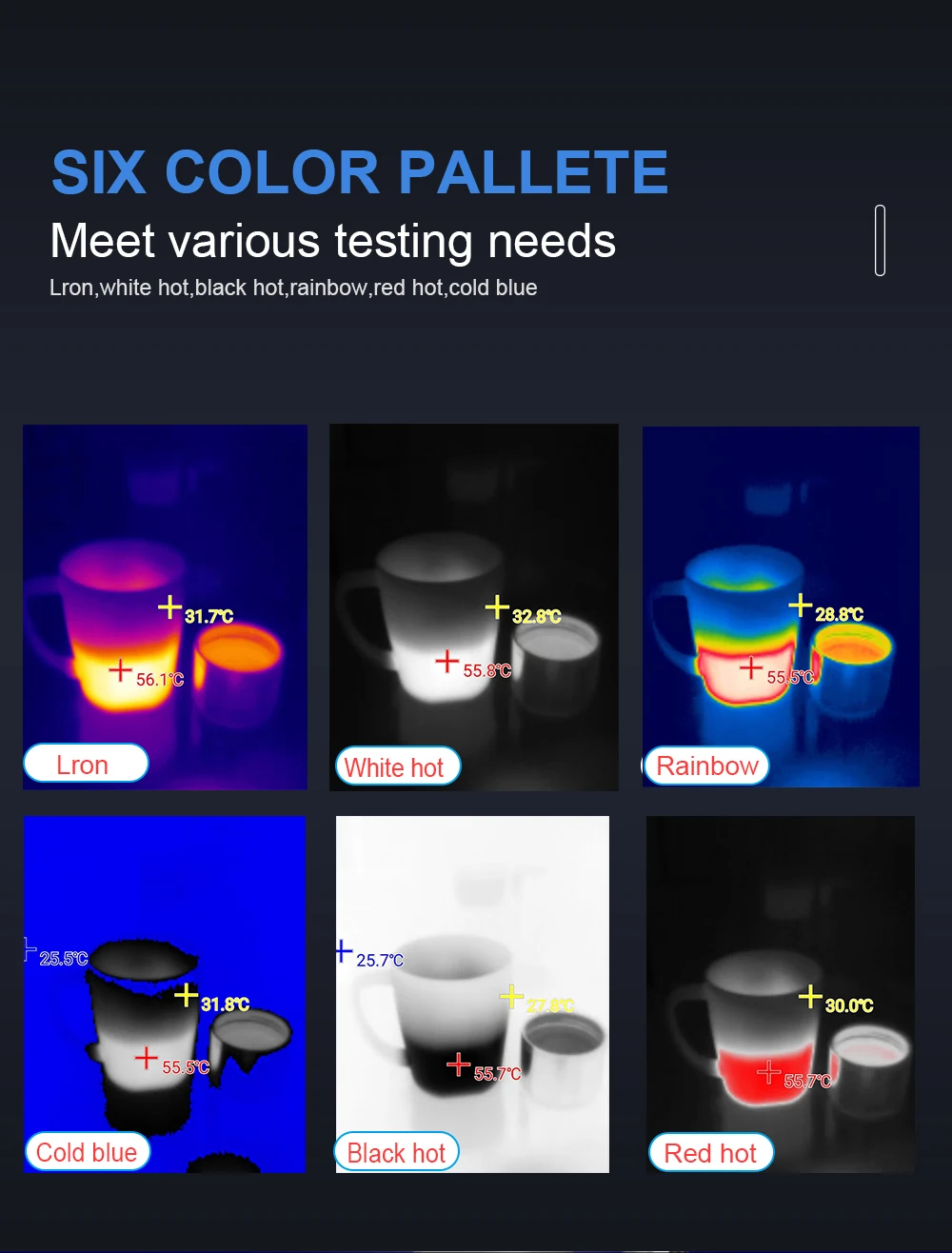

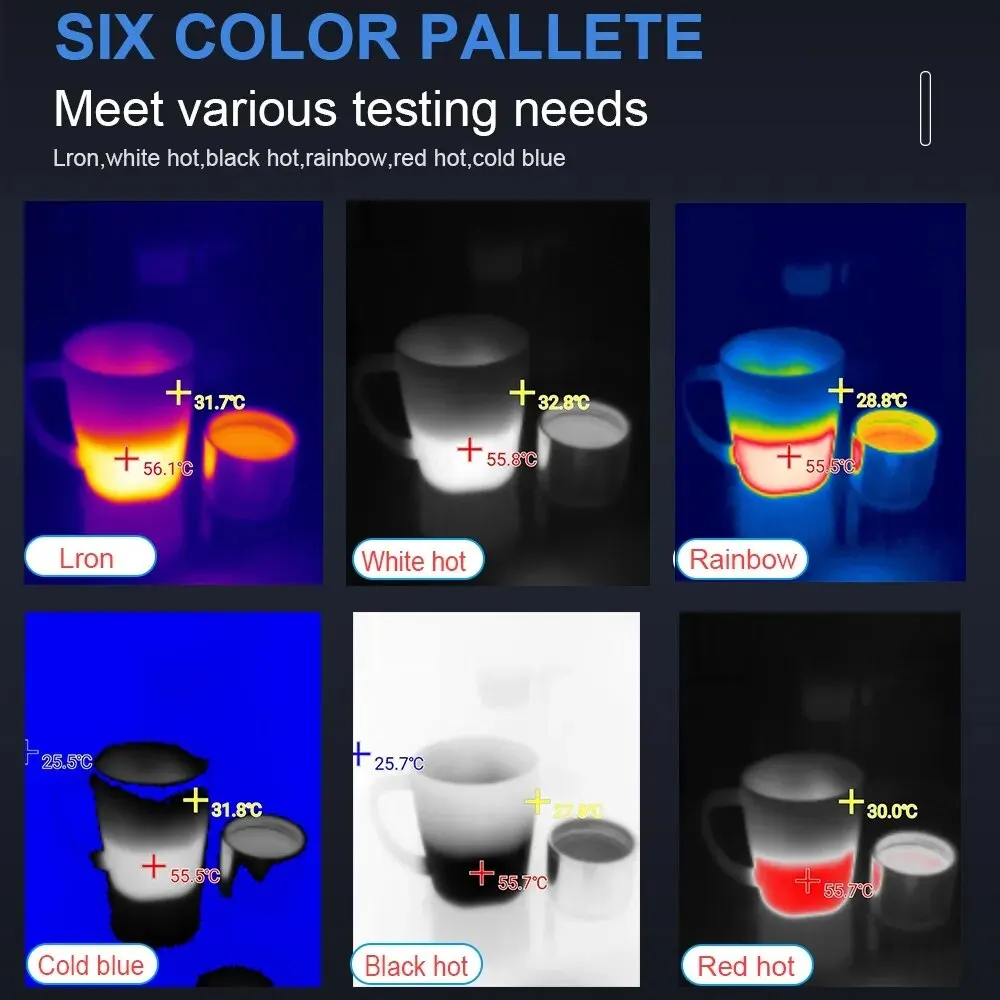

Advanced App Features: มาพร้อมแอปพลิเคชันที่รองรับการวิเคราะห์อุณหภูมิหลายจุด (Point, Line, Area), การบันทึกภาพและวิดีโอความละเอียดสูง และการเปลี่ยนสี Palette เพื่อความเหมาะสมในแต่ละหน้างาน

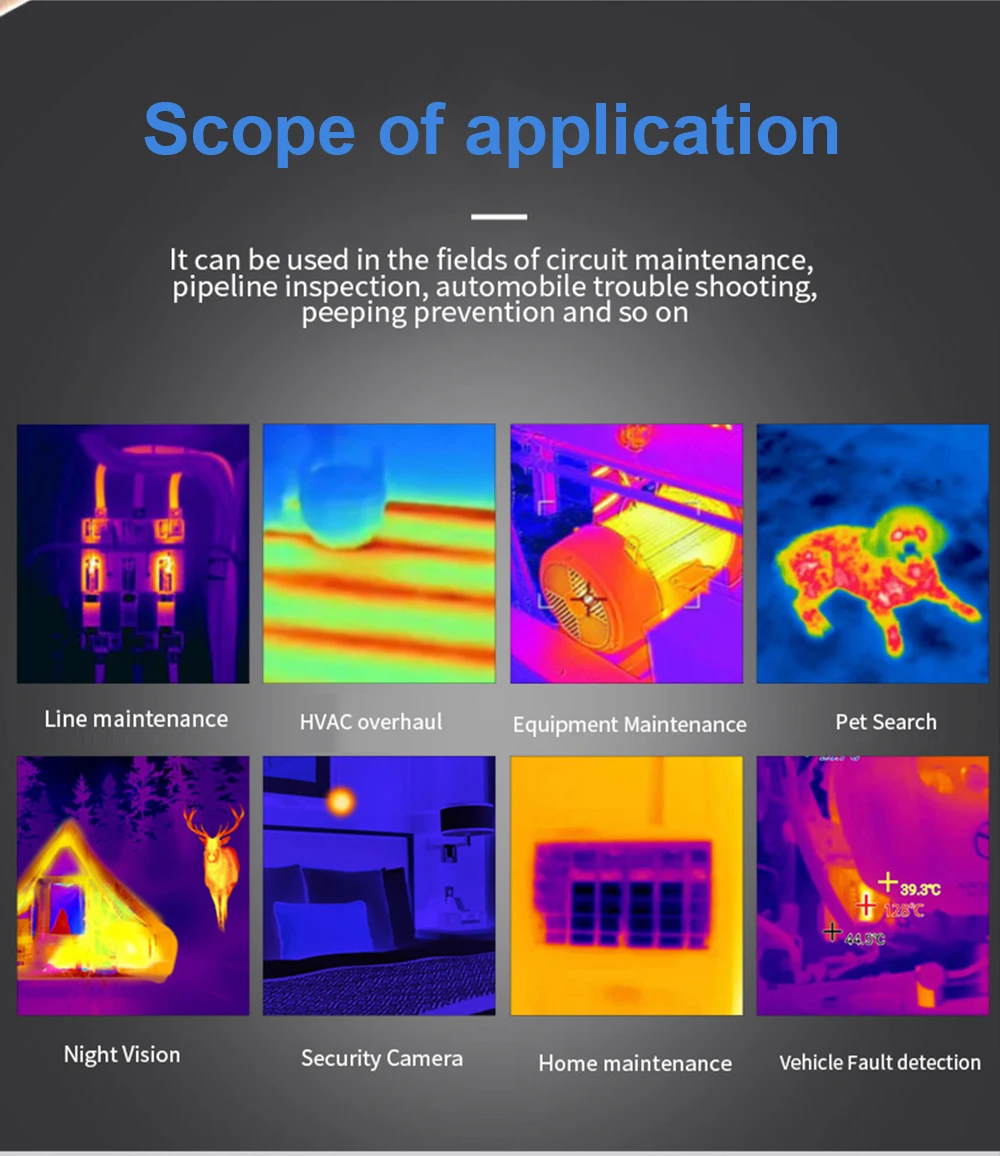

🌟 การใช้งานที่ทรงพลัง:
-
Solar Maintenance: ตรวจสอบประสิทธิภาพแผงโซลาร์เซลล์ ค้นหาเซลล์ที่ตายหรือทำงานผิดปกติ
-
Electrical Inspection: ตรวจหาจุดเชื่อมต่อที่หลวมหรือโหลดเกินในตู้ไฟและอุปกรณ์กำลัง
-
HVAC & Industry: วิเคราะห์การทำงานของระบบทำความเย็นและเครื่องจักรขนาดใหญ่
📋 ข้อมูลทางเทคนิค (Specifications):
-
ความละเอียดเซนเซอร์: 256 x 192 พิกเซล
-
อัตราเฟรมเรต: 25Hz (ภาพลื่นไหลพิเศษ)
-
ช่วงการวัดอุณหภูมิ: -15°C ถึง 600°C
-
ความแม่นยำ: ±2°C หรือ ±2%
-
การเชื่อมต่อ: USB Type-C (Android)
-
น้ำหนัก: เบาพิเศษ พกพาสะดวกพร้อมเคสป้องกัน

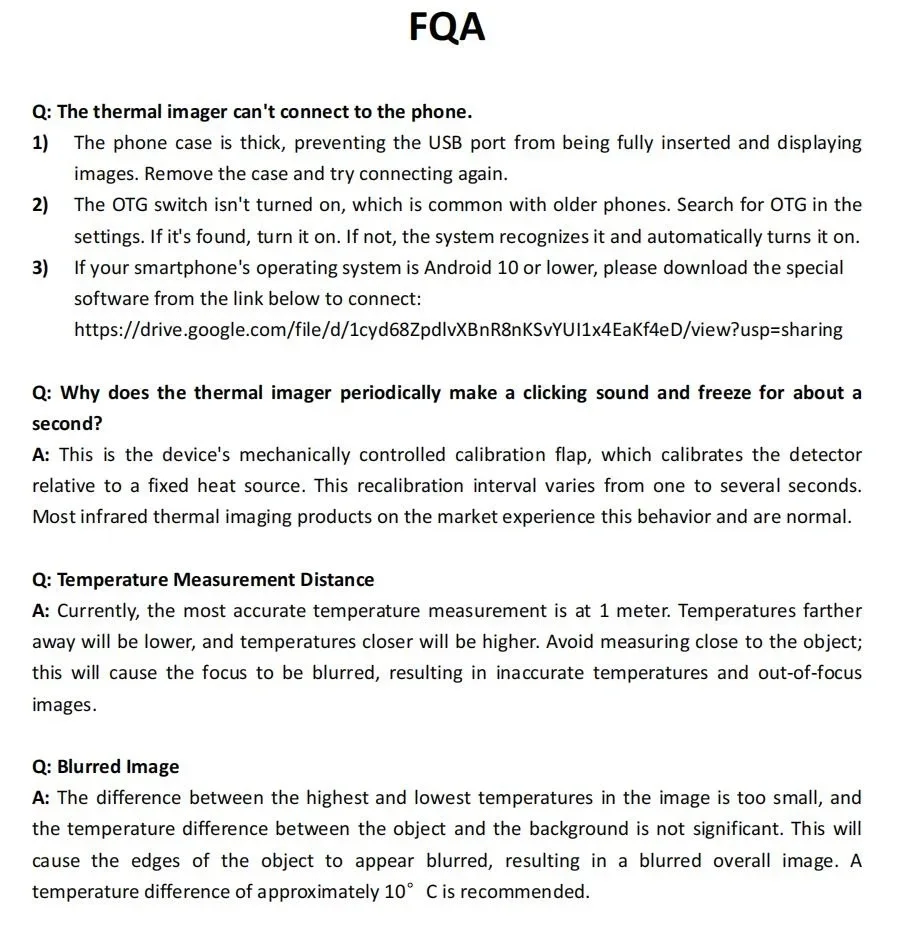

Note: In order to correct non-uniformity, a mechanical control calibration plate is installed in front of the thermal imaging detector, which will be calibrated every 10 seconds to ensure more accurate measurements. Usually, there is a pause of about 1-3 seconds, which is caused by the thermal imaging detector calibration . This is a normal phenomenon, please don’t worry
Upgrade

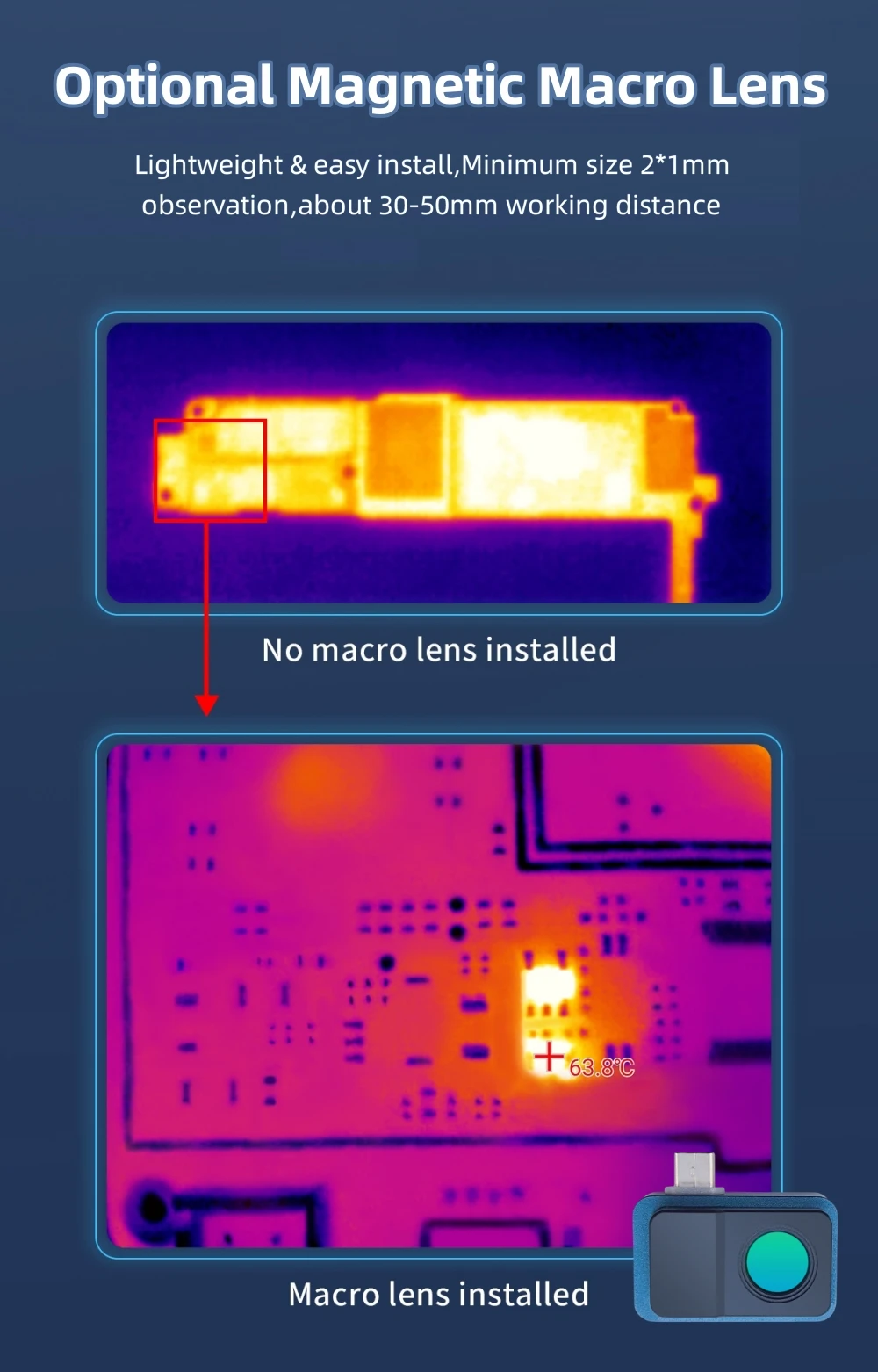

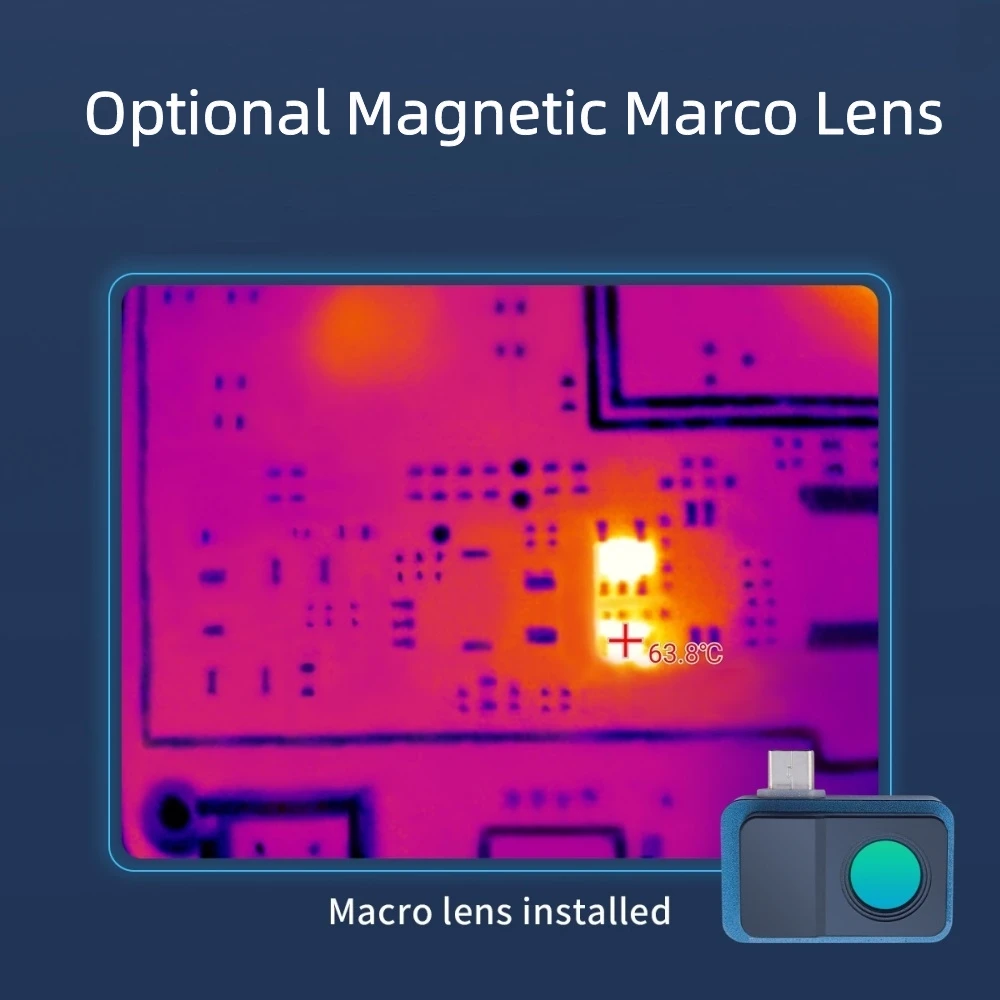

Optional magnetic macro lens, lightweight, all germanium optical transmittance 93%
Minimum observable component size of 2 * 1mm
Features:
High-quality optical lens, equipped with 256*192 high-resolution infrared sensor, excellent imaging effect
25Hz high frame rate imaging, smooth picture flow without lag
Used with mobile APP, it supports taking photos ,videos and storing them in the photo album, allowing professional thermal imaging analysis anytime and anywhere.

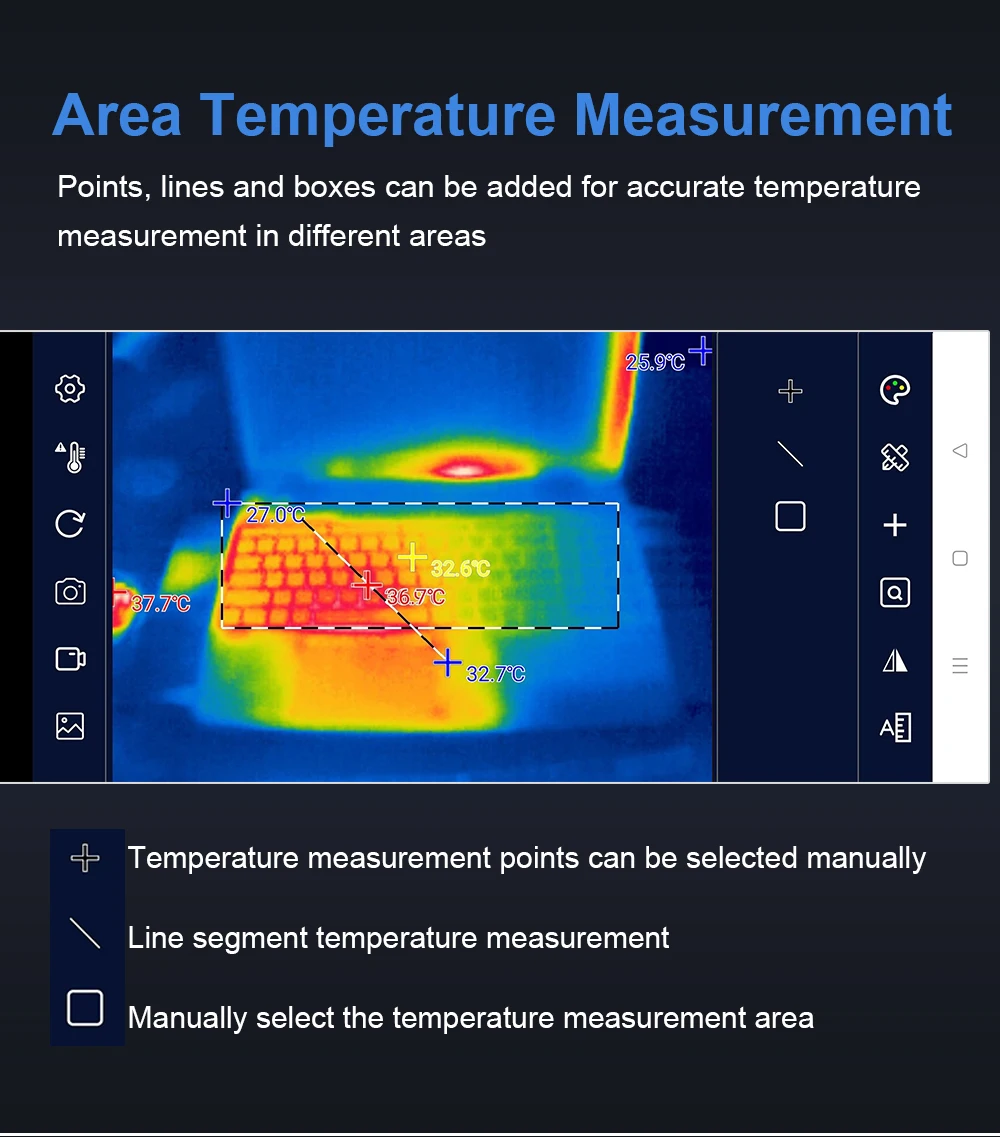

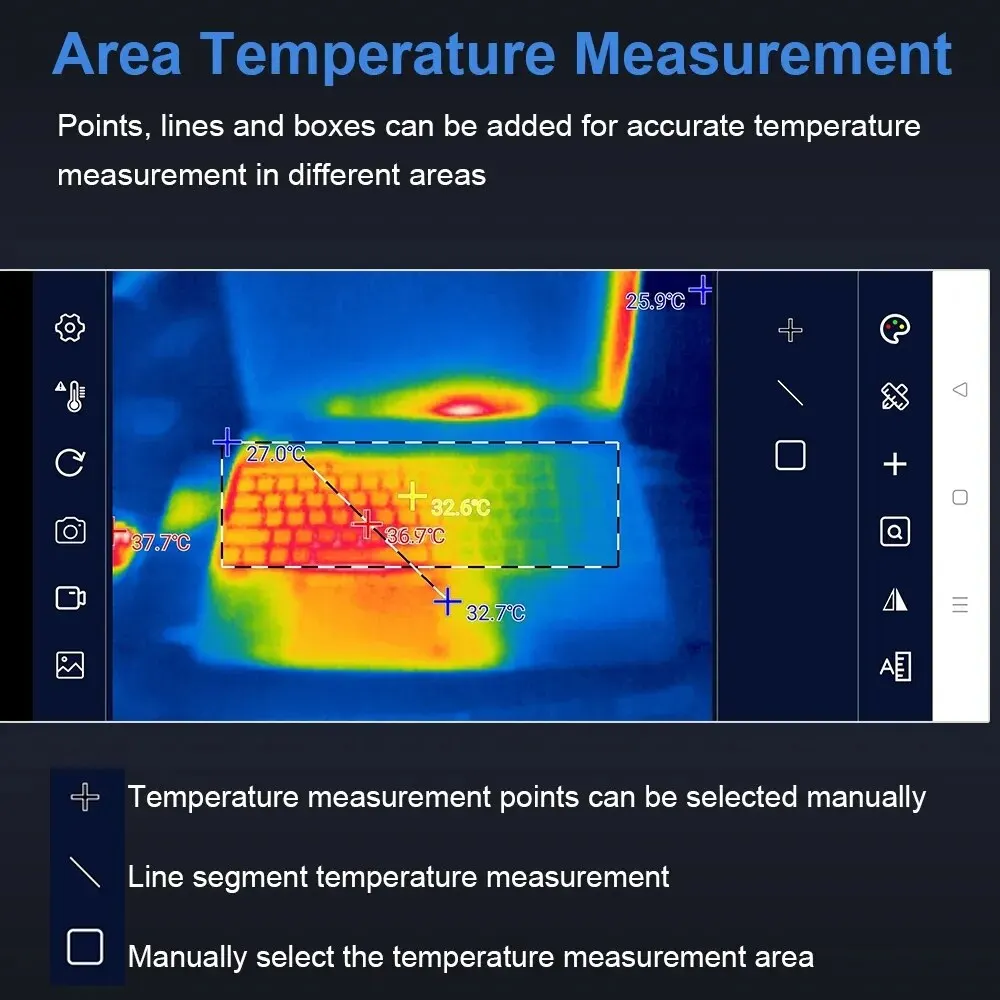

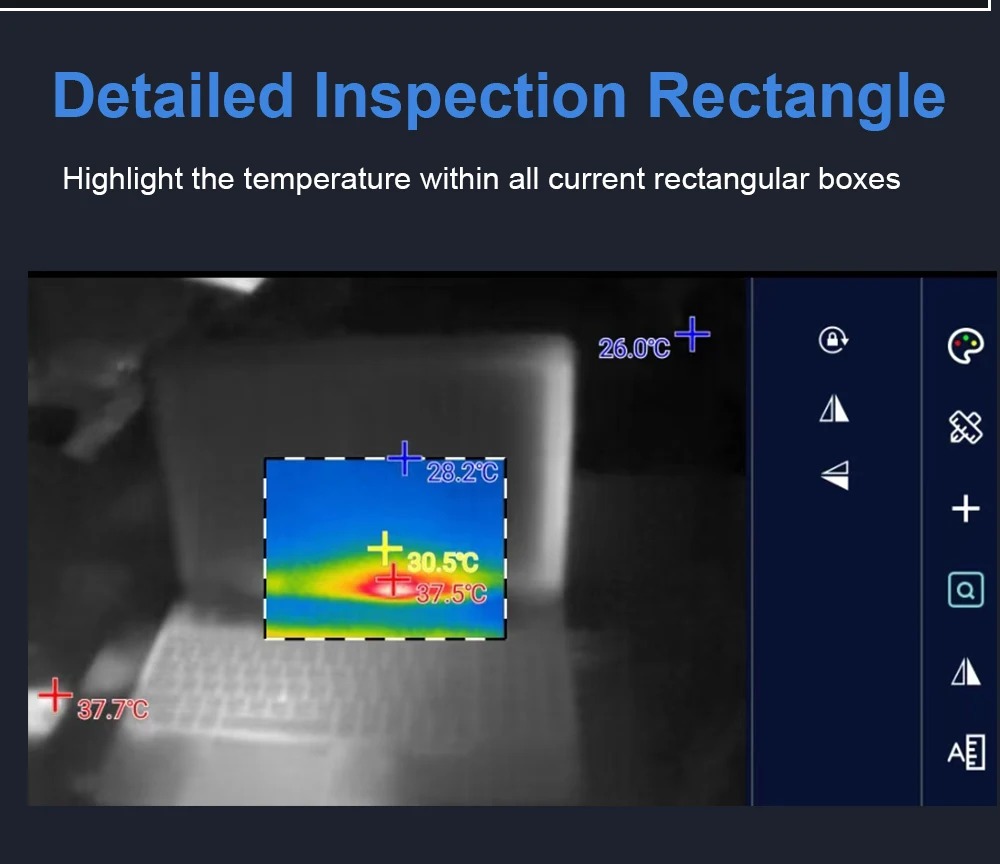

Add points, lines and rectangular boxes for regional temperature measurement. Lines and rectangular boxes support high and low temperature tracking and high temperature alarms.
Wide temperature measurement range: -15℃-600℃;

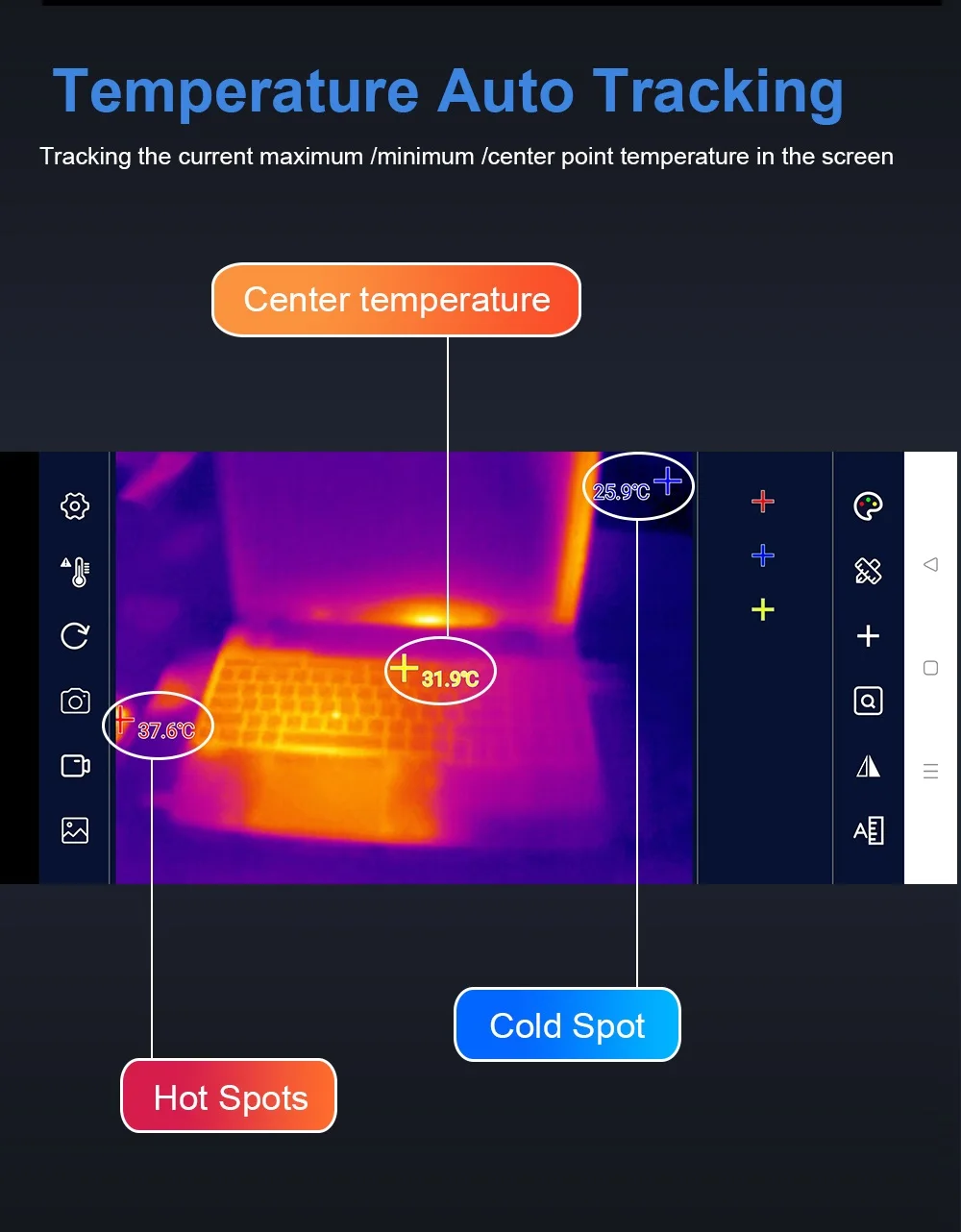

Automatic temperature tracking, supporting high and low temperature and center point temperature tracking;

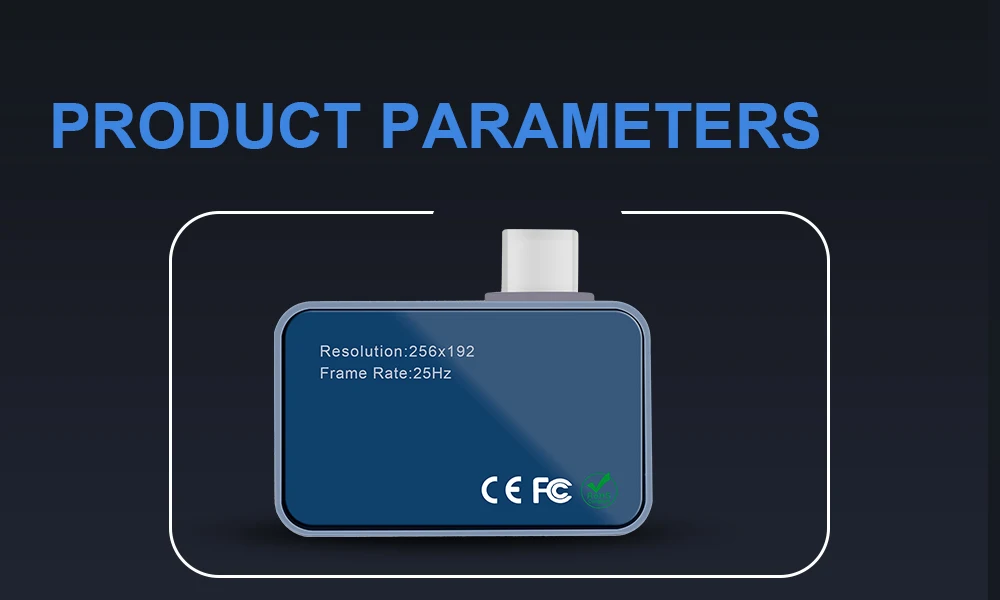

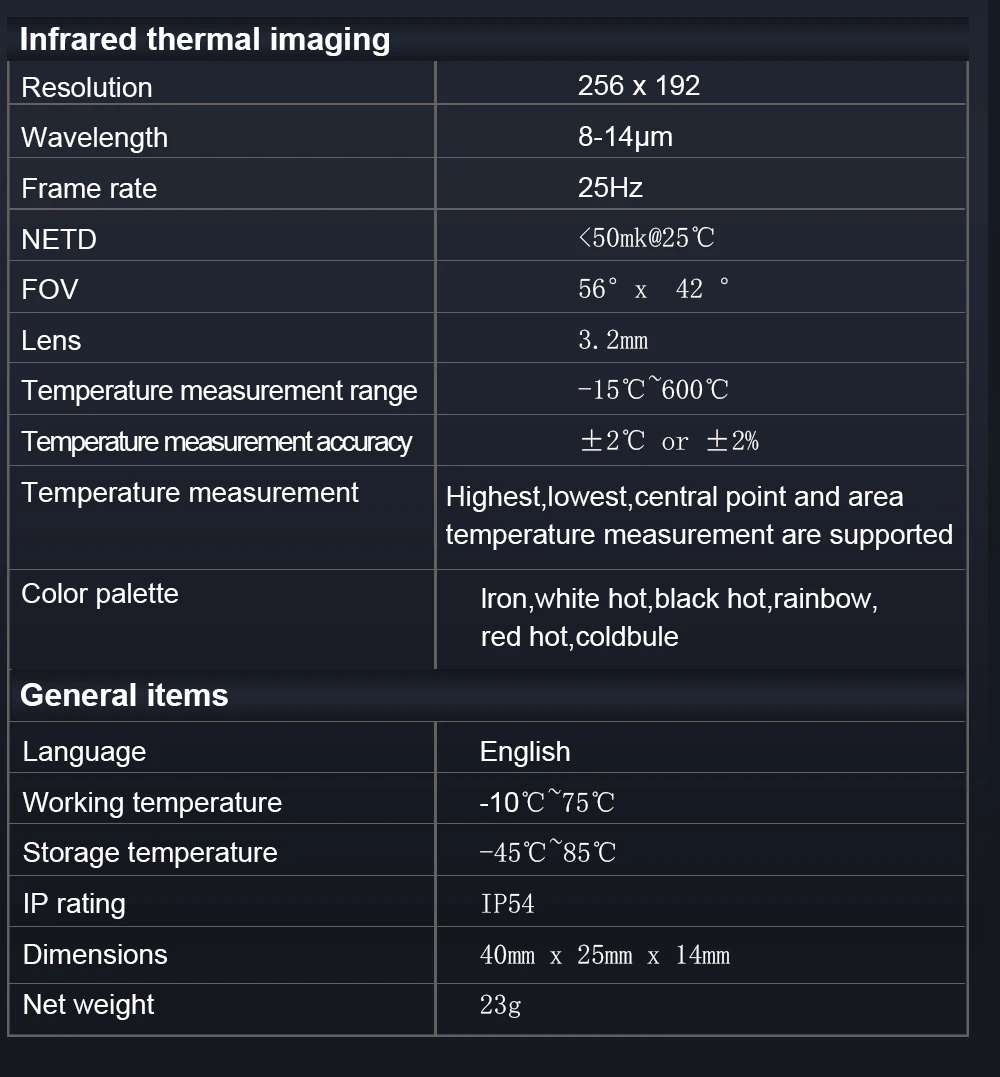

Specifications:
Model:T7
Resolution:256 x 192
Wavelength:8-14um
Frame rate:25Hz
NETD:<50mk@25℃
FOV :56°x42°
Lens:3.2mm
Temperature measurement range:-15℃~600℃
Temperature measurement accuracy:士2C or 士2%
Temperature measurement: Highest, lowest, central point and area temperature measurement are supported

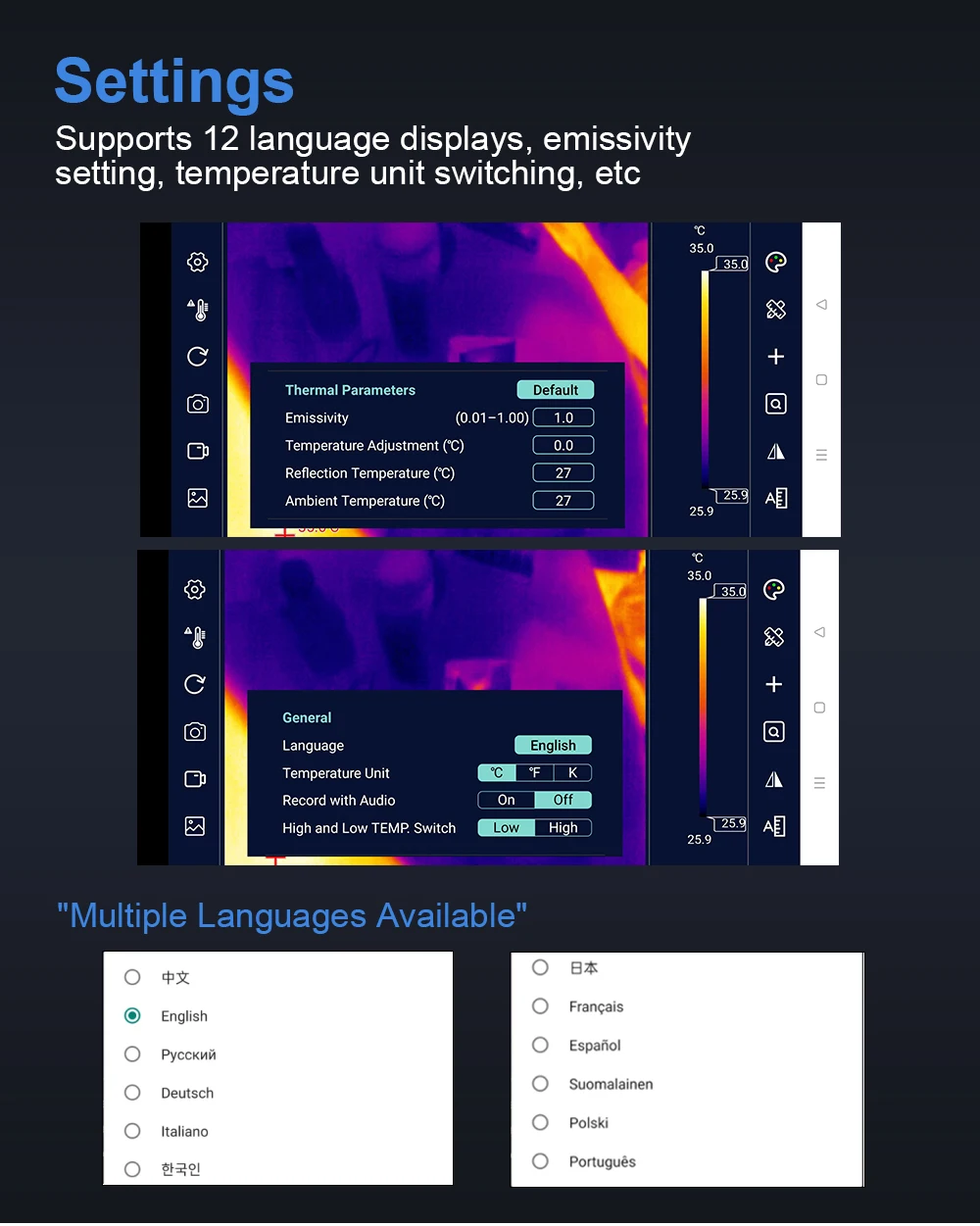

Language: Chinese, English, Korean, Portuguese, Russian, Spanish, Italian, Dutch, Polish, Japanese, French, Finnish
Working temperature:-10℃~75℃
Storage temperature:-45℃~85℃
IP rating:IP54

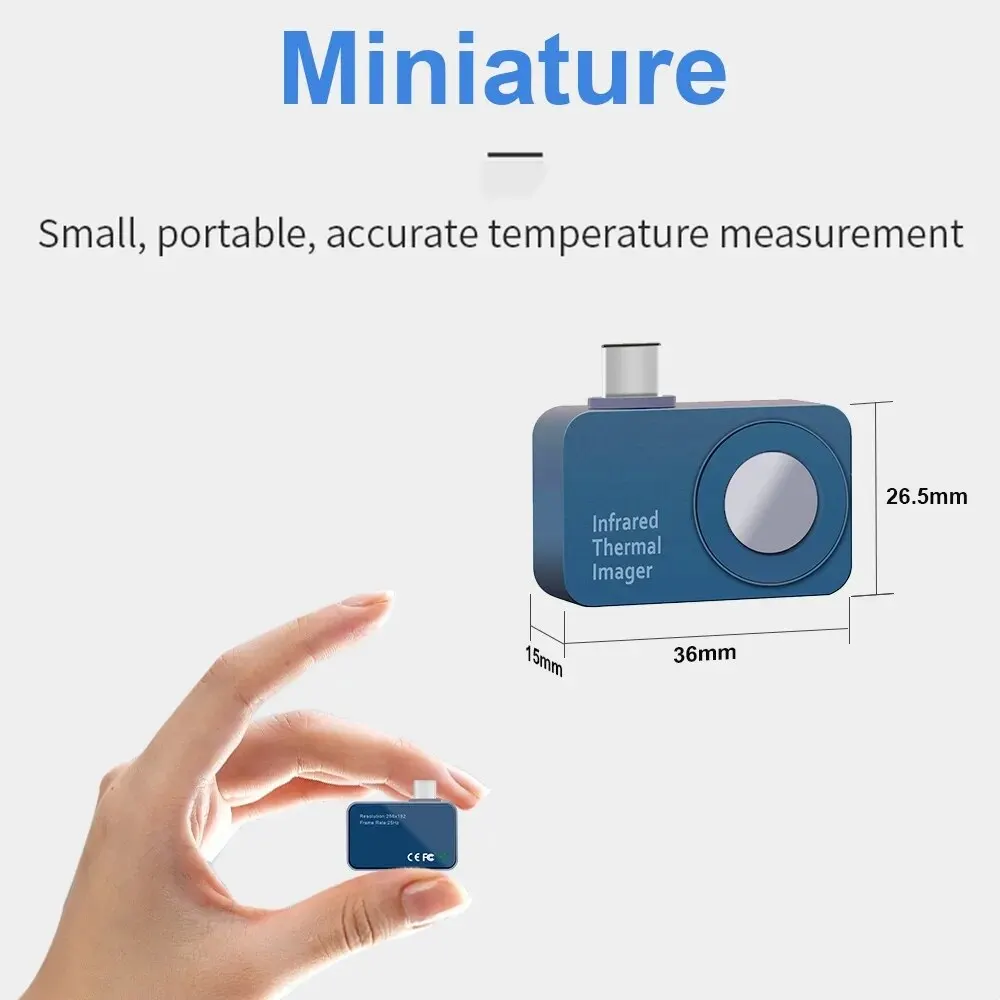

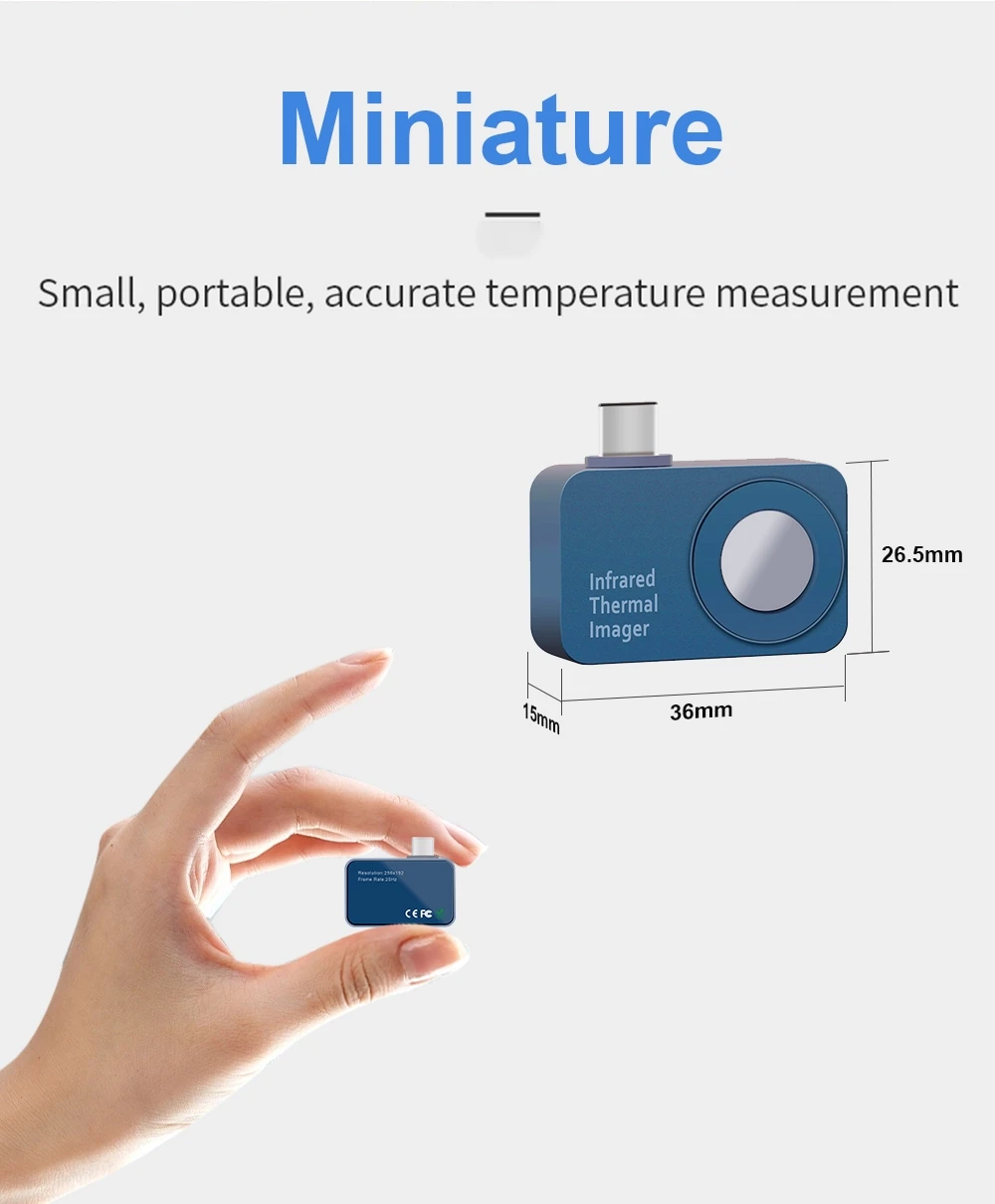

Dimensions:25mm x40mm x14mm
Net weight:23g

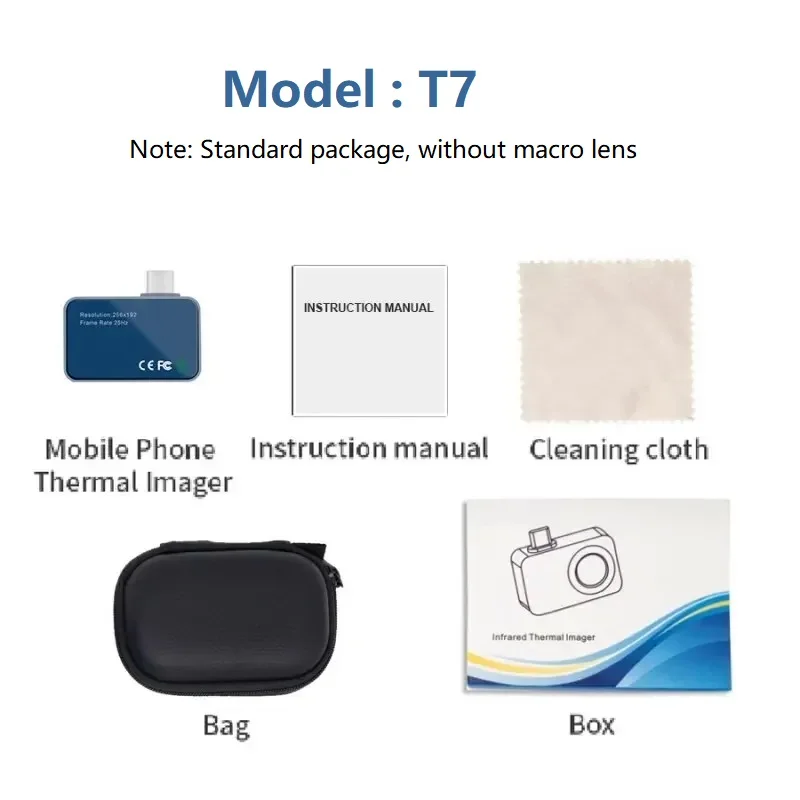

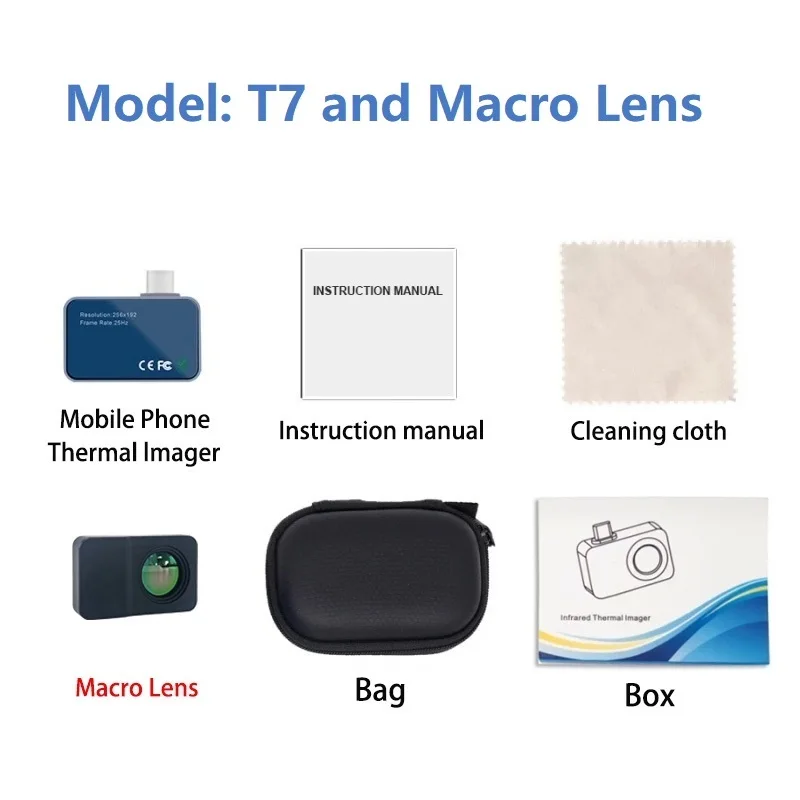

Package List:
1 x Thermal Imager
1 x English User Manual
1 x Cloth
1 x Box
1 x Storage Bag
1 x Macro Lens(Optional)
