2025 ใหม่ล่าสุด! เครื่องทดสอบและจำลองสัญญาณ Actuator รถยนต์อเนกประสงค์ (คอยล์จุดระเบิด, หัวฉีด, มอเตอร์เดินเบา, โซลินอยด์)

1000 orders
()
Free
Total Price:
Best price guarantee
Quantity:
View cart
Buyer protection
Safe shopping
Easy returns and refunds
Free shipping worldwide

รายละเอียดสินค้า (Product Description)

ตรวจเช็ก Actuator ครบวงจรด้วยเครื่องเดียว: เครื่องจำลองสัญญาณและขับเคลื่อนอุปกรณ์ไฟฟ้าในรถยนต์รุ่นปี 2025 หยุดการซ่อมแบบเดาเปลี่ยนอะไหล่ด้วยเครื่องมือวิเคราะห์ระดับมืออาชีพที่สามารถ “สั่งงาน” อุปกรณ์ไฟฟ้าในรถยนต์ได้โดยตรง เครื่องนี้ถูกออกแบบมาเพื่อทดสอบการทำงานของ Actuator ทุกประเภท ช่วยให้ช่างสามารถแยกแยะได้ทันทีว่าปัญหาเกิดจากตัวอุปกรณ์ หรือเกิดจากสายไฟและกล่อง ECU

🎯 ฟีเจอร์เด่นที่เหนือกว่ารุ่นทั่วไป:

  • Ignition Coil Tester: ทดสอบคอยล์จุดระเบิดได้ทั้งแบบ 2 สาย และแบบที่มีทรานซิสเตอร์ในตัว (3-4 สาย) ปรับความถี่และความแรงของไฟได้เหมือนการทำงานจริงบนเครื่องยนต์

  • Injector & Solenoid Driver: จำลองสัญญาณขับหัวฉีด (เบนซิน/ดีเซล) และโซลินอยด์วาล์วต่างๆ (เช่น วาล์ว VVT, EGR) เพื่อฟังเสียงการทำงานหรือเช็กการฉีดน้ำมัน

  • Stepper Motor Controller: รองรับการทดสอบมอเตอร์เดินเบา (Idling Stepper Motor) ทั้งแบบ 4 สาย และ 6 สาย ซึ่งเป็นจุดที่เช็กยากที่สุดในระบบเครื่องยนต์

  • PWM Signal Generator: จำลองสัญญาณ Duty Cycle เพื่อขับพัดลมหม้อน้ำไฟฟ้า หรือทดสอบเกจ์วัดบนหน้าปัดเรือนไมล์ (Instrument Cluster)

  • Variable Frequency & Duty: ปรับแต่งความถี่ (Hz) และรอบการทำงาน (%) ได้อย่างอิสระผ่านปุ่มหมุนที่แม่นยำ พร้อมหน้าจอแสดงผลดิจิทัล


📋 ข้อมูลทางเทคนิค (Specifications):

  • รุ่น: 2025 Edition (Advanced Drive Simulator)

  • แรงดันไฟฟ้า: DC 12V – 24V (รองรับทั้งรถเล็กและรถใหญ่)

  • ช่วงความถี่ (Frequency): 1Hz – 100KHz

  • ช่วง Duty Cycle: 1% – 99%

  • การทดสอบอุปกรณ์: คอยล์จุดระเบิด, หัวฉีด, โซลินอยด์วาล์ว, สเต็ปเปอร์มอเตอร์, พัดลมไฟฟ้า, หน้าปัดเรือนไมล์

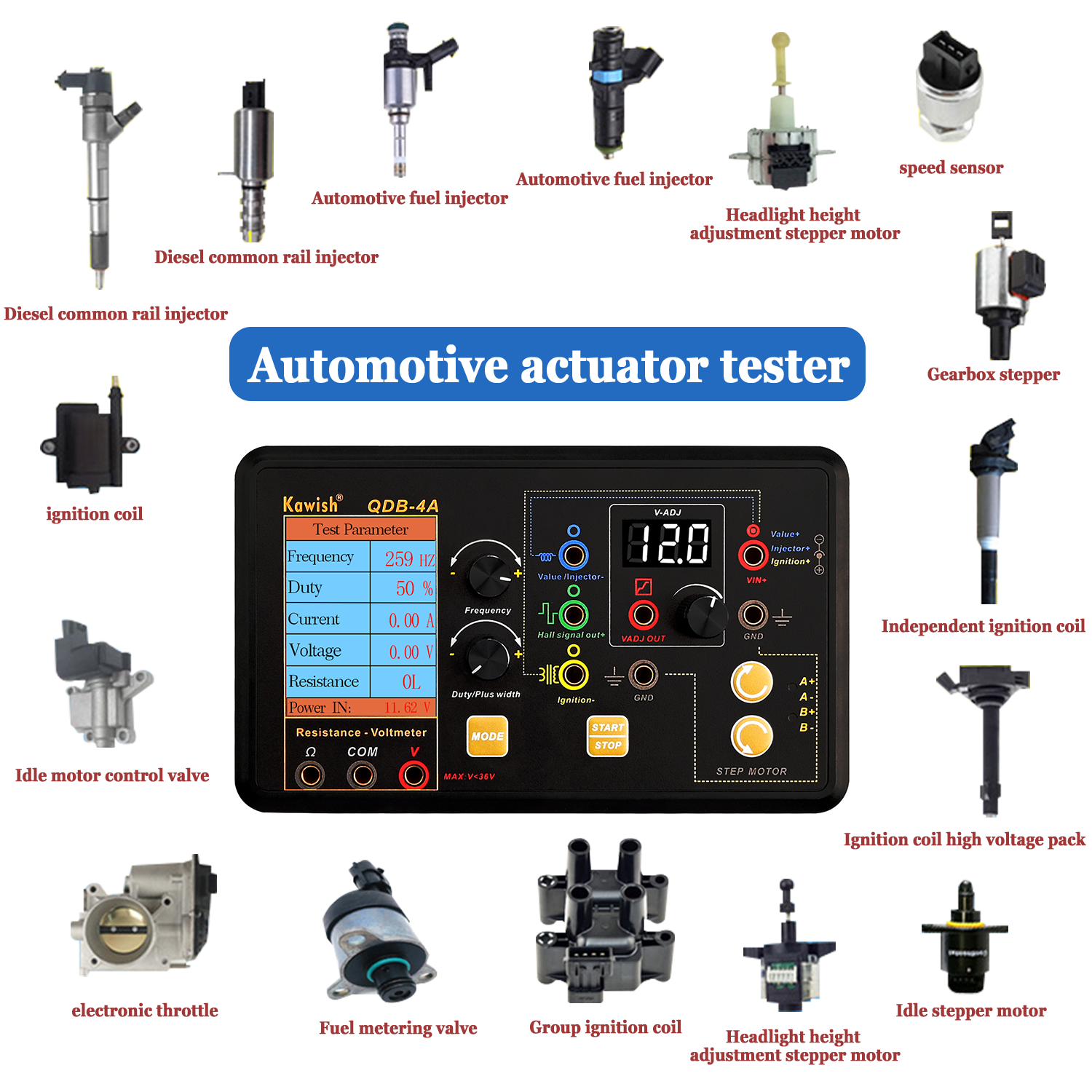

Upgraded Drive QDB-4A Automobile Ignition Coil Tester Injector Solenoid Valve Idling Stepper Motor Instrument Fault Detector

Large screen, and more Easy to operate

Product Main Functions:
1.Drive test ignition coil:including independent ignition,coil type,Module Type.
2.Drive test fuel injector:including gasoline-powered car 12V fuel injector,diesel vehicle 12V 24V fuel injector.
3.Drive and test solenoid valves and fuel metering valves controlled by various duty ratios.
4.Drive and test motors controlled by various duty ratios,urea pump motors,etc.
5.Drive and test idle stepping motors,instrument stepping motors,headlight follow-up steering stepping motor and so on.
6.Hall signal with adjustable output frequency,amplitude and duty ratio.Used to simulate various duty cycle sensors,such as air conditioning pressure sensor(duty cycle type),
air flowmeter(duty cycle type),etc.
7.Power supply voltage range:12V-24V,with reverse connection protection,overcurrent protection.
8.Electromagnetic coil driving current range:0-3.5A
9.Output frequency range:1HZ-100KHZ
10.Duty cycle adjustment:1%-100%
11.Adjustable voltage:1.25V-11.5V
Product Specification:
Model:QDB-4A
Power In:DC 8-28V
Power Out:0-2.5A
VADJ Out:0-1.5a
DMM:DC 0-30V/0-1M
PWM:1-100KHz/0-100%
Step Motor:Max 15A
Product SIze:17×9.8×2.8cm
Product Weight:About 175g
1 set Weight:About 0.39kg
Packing :Packing in colorful box

Package Including:

1 x QDB -4A

1x power cable

3x test connect cables

4xsingle plugs

1xIdle speed stepper motor plug

1xStepper motor welding cable















Brand Name:
kawish
Origin:
Mainland China
High-concerned chemical:
None
Is Batteries Included:
No
External Testing Certification:
CCC
Material:
plastic
Hardware Version:
V6.8
Item Length:
11
Item Type:
Mechanical Testers
Special Features:
Other
Software Version:
V6.8
Item Width:
6
Model Name:
KW-QDB-4A
Item Height:
3
Item Weight:
0.5
Voltage:
12V
Electronic:
No
Power (W):
1W
Choice:
yes
