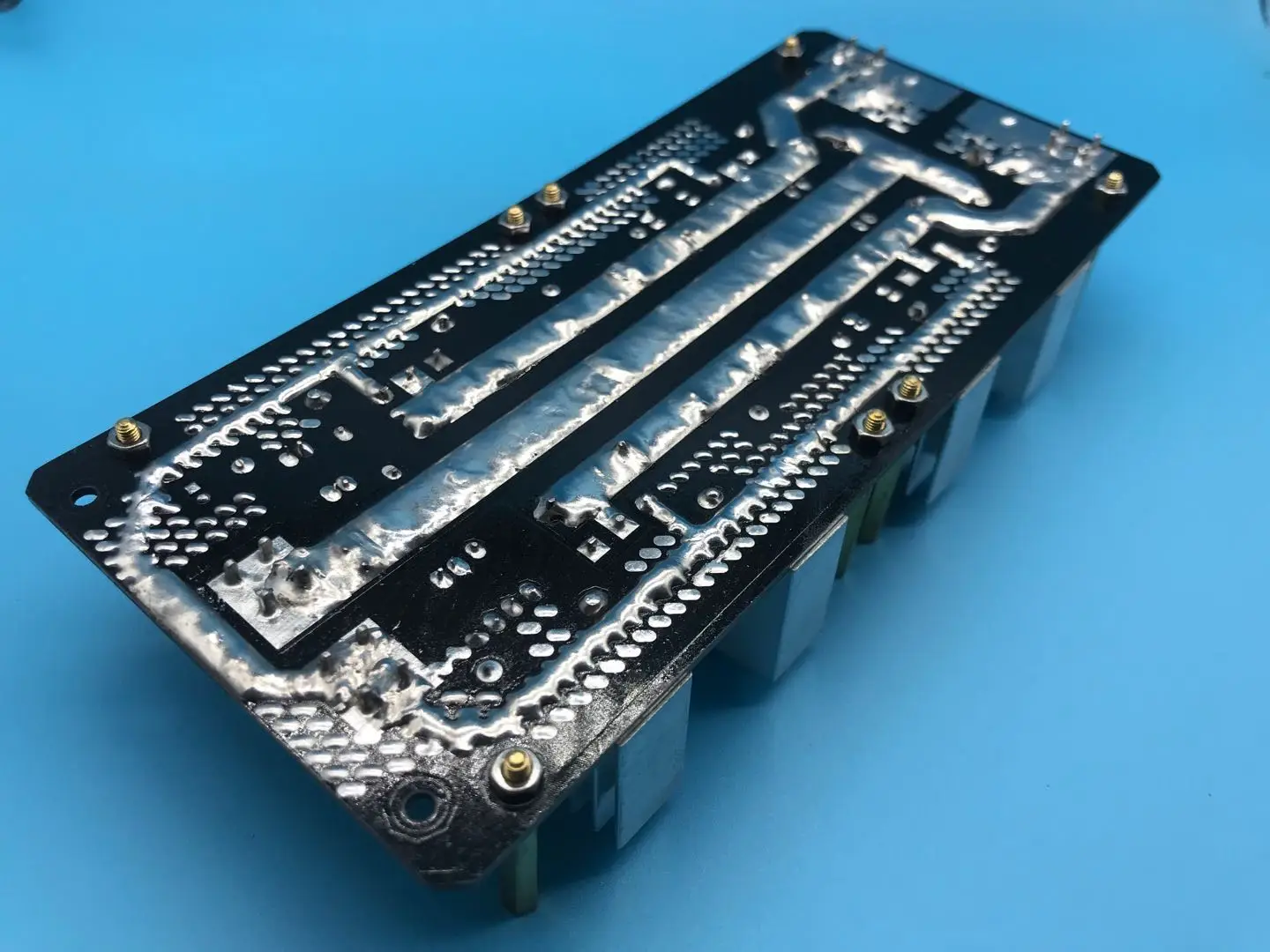

2000W 50A ZVS Low Voltage Induction เครื่องทำความร้อนแหล่งจ่ายไฟโมดูลเครื่องทำความร้อน Driver Tesla เครื่องทำความร้อน Coil

22 orders
Total Price:
Best price guarantee
View cart
Buyer protection
Safe shopping
Easy returns and refunds
Free shipping worldwide
Notice: Buyer need Welding thick copper wire On the Output Terminal and the Copper Tube

VCC: positive power supply (24V10A and above, 48V50A do not use lead-acid batteries)
GND: negative power supply
Fan: 48V after a single 24V in series
Drive output: OUT put_A, OUT put_B

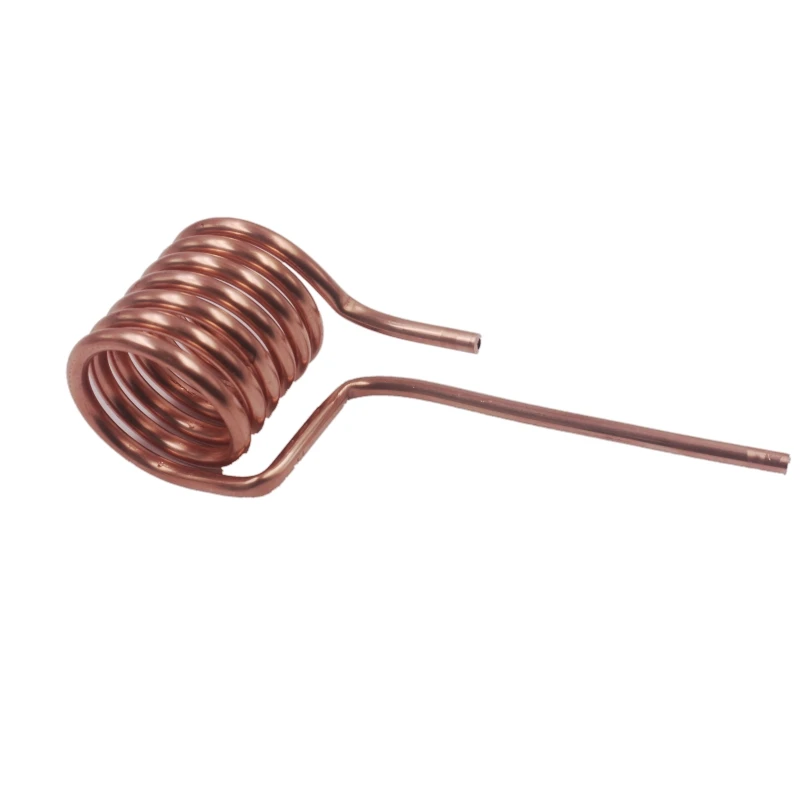

Coil production: 4-5MM for 24-48V (before winding the coil, you can use a sallow tube to cover the copper tube to prevent short circuit during heating). The more power the less
1. It is not possible to energize without connecting the coil or the high-voltage package.
2. It is best to connect an air switch between the power supply and ZVS to prevent the power supply from being protected by excessive current when the power supply is turned on.
3. For the first use, please connect the coil and power on for 5-10 seconds to check whether the heat sink is very hot (if the power is too large, the heat sink will be seriously heated when the power supply is overloaded). If it is too hot, increase the number of turns.
5. Use high power (above 1000W) to cool the copper pipe with water.
It is recommended to use a 36V30A power supply for induction heating. If the power of the 12V power supply is too small, the heating will hardly respond, and the heating of the 12V power supply will easily lead to a decrease in the output voltage of the power supply. It is very dangerous if it is lower than 12V.

1:     buyer need self-provided power and water cooling device

2:    The use of switching power supply, Please note that due to high power are generally slow start function, which just opened machine output voltage is slowly rising, while it is turned on before the induction heating circuit if the voltage rises to 12V, because start insufficient voltage can not afford to vibration, resulting in two simultaneous conduction mos tube so burned components.

3. The volume of heated objects cannot be more than 1/10 of the heating coil internal volume (that is, the heating cylinder diameter more than 1/3 heating coil diameter), otherwise it may because of overload and burned circuit or the power supply
